Fully Automatic Bottle Labeling Machine-27133

Product Code: REM-C4

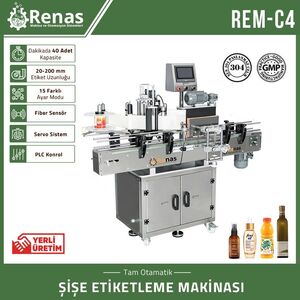

Fully Automatic Bottle Labeling Machine - REM-C4

Technical Specifications of REM-C4 Bottle Labeling Machine
Model: REM-C4
Outer Diameter: 18-100 mm
Label Length: 20-200 mm
Max Outer Diameter of Label Roll: 300 mm
Inner Diameter: 76 mm
Voltage: 220 V +/- 5V, 110 V +/- 5V
Power: 1 kW
Air Pressure: 0.4-0.6 mpa / 4-6 bar
Labeling Speed: 10-40 bottles / minute (Varies by Diameter)

General Features of REM-C4 Fully Automatic Bottle Labeling Machine
REM-C4 fully automatic bottle labeling machine has been developed to perform precise labeling processes without any problems.
You can label many different packages such as bottles, jars, cans with a single machine by changing the settings within minutes.
It has 15 different open and position settings. The use of adjustment sections is an extremely user-friendly labeling machine.
It is suitable for working in products between 80 ml bottle and 2000 ml.

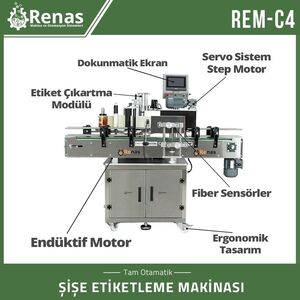

REM-C4 fully automatic bottle labeling machine has a sensor group consisting of servo system stepper motor drive group and fiber sensors. In this way, our machine always makes precise positioning to the same point and makes standard and always labeling with the same character.
One of the most important features of REM-C4 fully automatic bottle labeling machine is the plastering system consisting of elastomer sponge and polymer spinning conveyor that we offer as standard. Especially in your labels that require full winding, it prevents cross-sticking or cross-sticking of the label by positioning it minimetrically. In addition, the inductive motor that drives the spinning conveyor has speed adjustment like all other conveyor groups.
REM-C4 uses our own design label removal module in the fully automatic bottle labeling machine. The label removal module is controlled entirely by the PLC located in the main control panel. Thanks to this feature, the entire system works in harmony, all settings of the label removal module can be made from the touch operator panel with an easy-to-use menu.
The usage menu of the machine is highly functional. Thanks to the manual operation menu, which can be accessed from the touch operator panel with easy operation menu, spinning, labeling etc. You can operate the units manually and make the physical adjustments to be made according to your packaging in a short time. In addition, thanks to the manual labeling feature, which you can also access from the manual operation menu, you can simply insert the label into the flow path without removing any parts and attach it by touching a button on the screen.
Other Details About REM-C4 Fully Automatic Bottle Labeling Machine
The delivery time of the machines, where additional (optional) features are requested, takes place within the range of 5-20 days.
It is packaged to be suitable for long distance cargo.
Thanks to the contracted cargo company, the transportation of the product is done at an advantageous price. If your company has a contracted cargo company, you can choose to use that cargo.
It is a 1 year warranty product against factory faults.
