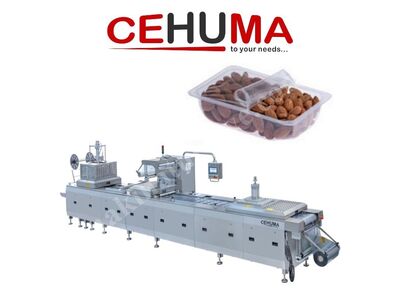

Thermoform Vacuum / MAP Packaging Machine for Dried Fruits-46127

Product Code: CM9

CEHUMA CM series thermoformers are basically for automatic vacuum and MAP (modified atmosphere packaging) applications and very often used in dairy, meat, poultry, seafood, dried fruits and vegetables, bakery, medical and so on. The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm.

Drying is one of the oldest methods used to preserve foods for long period of time. Due to their significantly active surface, preservation of dried fruits is quite challenging and they are very prone to humidity and oxidation during the strorage. Therefore, it is very important to select the ideal packaging for dried fruits like olives, dates, appricots, figs, mulberries, apples, plums, hazelnuts, wallnuts ...

Modified atmosphere packaging inhibites the damaging effects of external factors on dried fruits with the help of Nitrogen. Since the shelf life of dried fruit is very long, MAP materials must have very high moisture and gas barrier properties. Top and bottom co-extruded PA/PE thermoforming barrier films,offers a very succesfull protection for dates and other dried fruits.

Cehuma offers both vacuum and modified atmosphere packaging (MAP) machines for dates, appricots, olives, figs, apples, plums, nuts... at the highest possible speed with a reliable quality.
Technical Specifications
• Capacity (Cyc/min) | 5-12
• Web Width (mm) | 180-600
• Bottom Web Material | Flexible/Rigid
• Top Web Material | Pa+Pe/AL/Tyvek
• Machine Length (mm) | 3500-9500
• Forming Depth (mm) | 60-150
• Energy Consumption (kW) | 8-38
• Electric Suppy (3x380V. 50 Hz)
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
Advantages
• Corrosion-Resistant Gripper Chain
• Entire Stainless Steel Structure
• Modular Construction
• Programmable Advance Speed
• Multi-Language Selection
• Safety Standards According to "EC" Regulations
• Large Touch Screen
Options
• Flexible / Rigid Film
• Vacuum / MAP (modified atmosphere packaging) Application
• Dosing and Product Loading Systems
• Coding and Printing Systems
• Metal Dedectors / Check Weighers
• IP65 Level of Protection
• Printed Film Registration Top Film
