Thermoform Fill Seal Machine for Chocolate Paste-46135

Product Code: YZ5

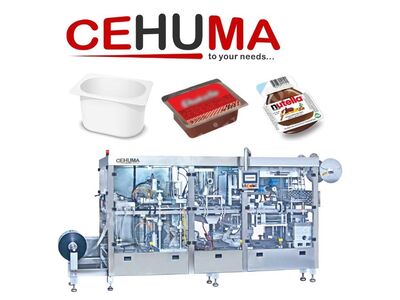

YZ thermoformers are mainly for automatic form fill seal applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt . The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

Cehuma YZ Series ,also called as horizontal form fill seal machines, are also very suitable for automatic filling of viscous fluids like ketchup, mayo, honey, jam, yoghurt, cream cheese, chocolate paste, marmelades, sauces, sesame oil... Food safety is again very critical in viscous fluids as they are quite prone to detoriation because they are minimally processed before packed that makes them open to microbial growth therefore selection of right thermoform fill seal machines are quite vital for these group of products. Cehuma horizontal form fill seal machines for ketchup, mayo, honey, jam, yoghurt, cream cheese, chocolate paste, marmelades, sauces, sesame oil... ensures the optimum performance with high hygienic standards. We also offer a complete turnkey solution to our customers including end of line robots for putting each product in the carton boxes, wrap and shrink them to make ready for shipment. Finally, it is quite common to use PS or relevant films for in bottom and aliminium foils on top.

Technical specifications
• Capacity (Cyc/min) | 15-35
• Index (mm) | 70-200
• Web Width (mm) | 150-500
• Bottom Web Thickness (μm) | 550-1200
• Bottom Web Material | PVC/PET/PS/PP
• Top Web Material | AL+PET
• Machine Length (mm) | 5.500-11.000
• Energy Consumption (kW) | 8-25
• Electric Supply | 3 x 380V. 50 Hz.
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
Advantages
• Entire Stainless Steel Structure
• Safety Standards According to "EC" Regulations
• Large Touch Screen
• Wide Range of Cup Design Possibilities
• Advanced Punching Technology
• Servo Technology
• Programmable Advance Speed
• Multi-language Selection
• Precise Dosing
Options
• Automatic Dosing
• Water Dosing
• Juice Dosing
• Viscous Fluids Dosing
• IP65 Level of Protection
• UV Lights Sterilization
• Hepa Filter
• CIP (Clean In Place) Integration
• Labeling Systems
