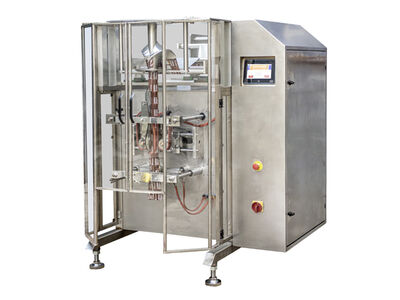

Full Automatic Vertical Filling and Packaging Machines-20168

Product Code: ERPAK PVS

-Pack Type: Pillow Bag, Flatbag

- Products to be packaged: Spices, rice flour, coffee, chemical and agricultural powder and powder products.
Filling capacity: min. 20gr - max. 500gr
Bags type: pillow bag

Technical information
- The machines main mechanism is mechanical and pneumatic controlled.
- The PLC electronic circuit has been used in this machine .
- Weight adjustment : Auger filling system. In order to produce bags of different weights, different diameters of auger and pipe shall be used.
- Dimensions of the bags :
Width: min. 65mm. –max. 170mm. In order to obtain different dimensions of bags width, it is necessary to use different “forming shoulder and pipe”.
Length: min. 75mm – max. 320mm.(photocell controlled)

- The main frame of the machine size: 120cm (width)-180cm(depth)-300cm(high).
- Electric: Three phase, 380-volt - 4kw/h – 50hz.
- Air need: 100 liter/minute (As the mechanical and pneumatic controls are used at the same time, the air usage is less than the other pneumatic machines.)
- Machine speed : 30-45bags/minute

Helicoid (screw)feeding system. (Elevator for powder products)It is necessary when automatically feeding required. This used to be feed the machine hopper from the floor level.
