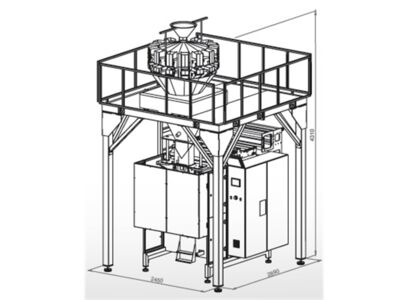

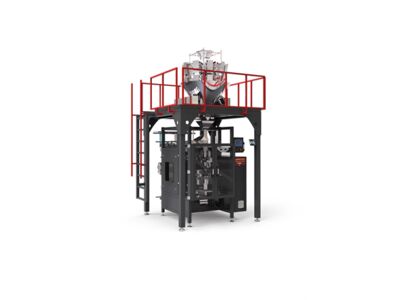

IMQ-W Series Quadseal Packaging Machine With Multihead Weigher-18533

Product Code: IMQ-W

• Suitable for granule type of products. The weighing unit is controlled by a seperate microprocessor and touch screen,
• Supports many usefull functions such as multi dumping, automatic product conveyor
control, self cleaning, recipe record for different products, different language and etc.
• Different amount of weighing buckets in different dimensions should be provided with respect to type of product. Parts touching to products are easy to dismount and cleaning,
• All surfaces touching to products are AISI 304 stainless steel,
• Easy demountable forming tube,
• Suitable for Quadro package,
• Easy adjustable speckle control and more precise package length,
• Due to continuously controlled printer error, prevents unprinted and faulty print,
• Coil unwinding is driven by AC motors,
• Horizontal jaw press and cutting unit are driven by pneumatic,
• Cold or hot sealing techniques can be applied according to the packaging type,
• Continuously control tension
• Centering film due to automatic lateral adjustment of film,
• Suitable for CE standards,
• Different language options and easy-to-use touch screen.

Optional Equipments:
• Nitrogen filling unit
• Screw feeding unit
• Conveyor band
• Special Vacum supported belts. (Increases belt life time and machine speed)
• Eurohole / Hanger Hole
• Printer with barcode and date writing feature
• Contact us for different type of packages, products and capacities.
