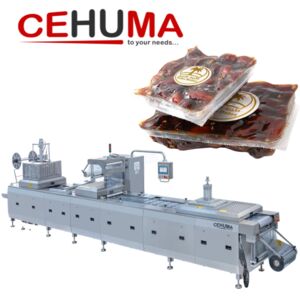

Thermoform Vacuum / Modified Atmosphere Pressure (MAP) Dates Packaging Machine-46122

Product Code: CM5

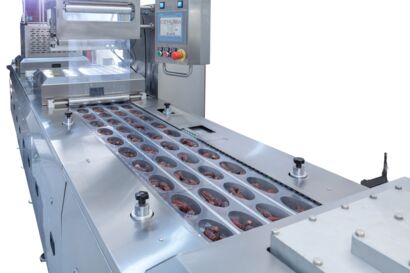

CM series thermoformers are basically for automatic vacuum and MAP (modified atmosphere packaging) applications and very often used in dairy, meat, poultry, seafood, dried fruits and vegetables, bakery, medical and so on. The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm.
Packaging plays an important role in providing safe and high quality of products that are fresh, minimally and fully processed food products. In its various forms, packaging also plays a critical role in developing a marketable product, that enhances consumer appeal and shelf presence making it ‘easy-to-sell’ in a retail environment. A good packaged food product when eaten by the consumer, when maintaining high quality, delivers customer satisfaction, thereby providing long term marketability of the packaged product.
Date is a berry fruit that can be consumed at three stages of its growth and development, including Khalal, Rutab and Tamar.

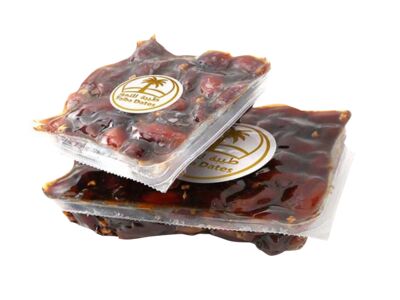

Cehuma offers its CM series thermoform packaging machines for dates of different varieties for both vacuum and mofieid atmosphere packaging to increase the shelf life and sales.
Technical Specifications
• Capacity (Cyc/min) | 5-12
• Web Width (mm) | 180-600
• Bottom Web Material | Flexible/Rigid
• Top Web Material | Pa+Pe/AL/Tyvek
• Machine Length (mm) | 3500-9500
• Forming Depth (mm) | 60-150
• Energy Consumption (kW) | 8-38
• Electric Suppy (3x380V. 50 Hz)
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
Advantages
• Corrosion-Resistant Gripper Chain
• Entire Stainless Steel Structure
• Modular Construction
• Programmable Advance Speed
• Multi-Language Selection
• Safety Standards According to "EC" Regulations
• Large Touch Screen
Options
• Flexible / Rigid Film
• Vacuum / MAP (modified atmosphere packaging) Application
• Dosing and Product Loading Systems
• Coding and Printing Systems
• Metal Dedectors / Check Weighers
• IP65 Level of Protection
• Printed Film Registration Top Film
