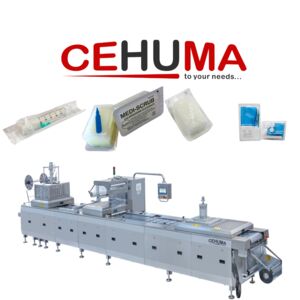

Thermoform Packaging Machine for Medical Kits-46128

Product Code: CM10

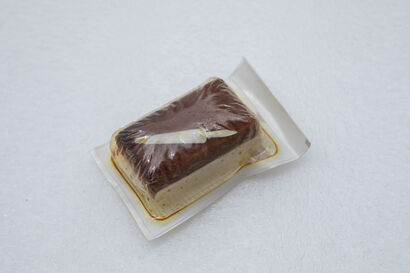

CEHUMA CM series thermoformers are basically for automatic vacuum and MAP (modified atmosphere packaging) applications and very often used in dairy, meat, poultry, seafood, dried fruits and vegetables, bakery, medical and so on. The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm.

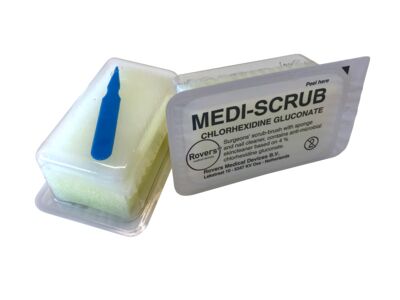

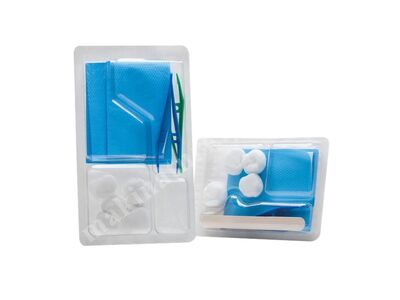

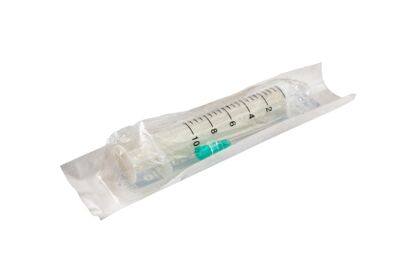

Cehuma is also known for high demanding thermoforming packaging machines for medical kits like surgical brushes, syringes, diagnostic kits, medical sponges etc…
Cehuma CM Series are very suitable for thermoforming packing of medical kits even in cleanroom environment with fully equipped at highest standards as well as fully integration of pre and post processes to offer the best optimum efficiency.
Technical Specifications
• Capacity (Cyc/min) | 5-12
• Web Width (mm) | 180-600
• Bottom Web Material | Flexible/Rigid
• Top Web Material | Pa+Pe/AL/Tyvek
• Machine Length (mm) | 3500-9500
• Forming Depth (mm) | 60-150
• Energy Consumption (kW) | 8-38
• Electric Suppy (3x380V. 50 Hz)
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
Advantages
• Corrosion-Resistant Gripper Chain
• Entire Stainless Steel Structure
• Modular Construction
• Programmable Advance Speed
• Multi-Language Selection
• Safety Standards According to "EC" Regulations
• Large Touch Screen
Options
• Flexible / Rigid Film
• Vacuum / MAP (modified atmosphere packaging) Application
• Dosing and Product Loading Systems
• Coding and Printing Systems
• Metal Dedectors / Check Weighers
• IP65 Level of Protection
• Printed Film Registration Top Film
