H20 TYPE COLUMN-WALL FORMWORK SYSTEM-670

Product Code: ENDÜSTRIYEL KOLON VE PERDE KALIBI

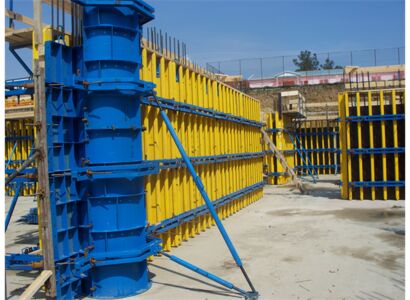

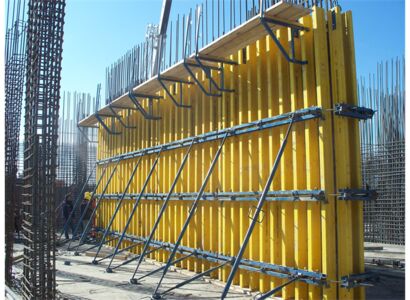

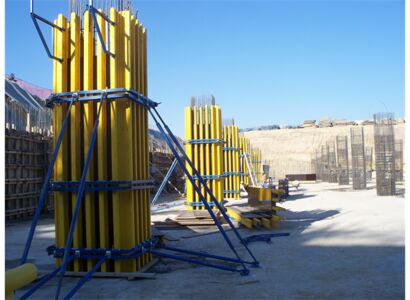

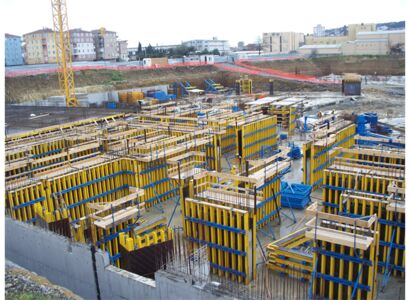

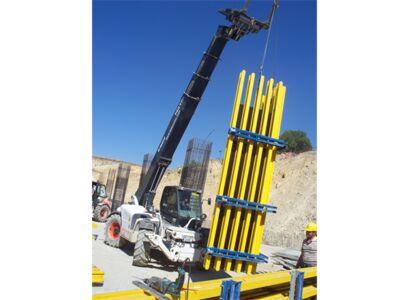

Column-Curtain formwork system takes place by solid webbed H20 timber beams tied to tensile and compressive strength resistant steel waters by the beam clamps that can transmit force to the steel waters, and covering the framed form by plywood. Formed panels are connected to eachother by Water Connectors with using wedges. Using wedges provides ease of erection and dismantling. Fresh concrete pressures that apply over both sides of curtain wall formwork systems are reciprocally transferred and supported through means of tierods placed within the molding. This anchorage system has tensile loadbearing capacity up to 90 KN. Large areas can be covered by establisting large surfaced panels. Heavy panels can be carried only by crane. After the assembling of the panels, they can be used till the end of the job without any dismantling. This specification of the system provides reduced labor, time and minimizes wasted material. Since the load bearing capacity of the system is very high, it is possible to cast high walls and columns. By the means of the filler plates, system can be adapted to all kinds of projects,shapes and sizes. Formworks are brought to plumb line in vertical by two armed(axial and adjustable) pushpull props, placed on one side. Static calculations are being made in compliance with the German DIN 18218 norms. The height of the curtain formwork system can be increased by the use of H20-H20 connecting component for varying heights in a speedy and safe manner.
