Flanged scaffolding -43526

Product Code: 730840

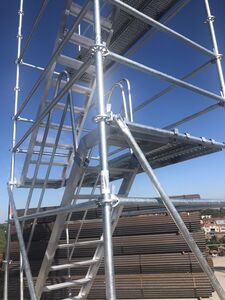

Flanged scaffolding is used primarily in industrial buildings, shipbuilding and repairs (shipyards), art
buildings, power plants, aircraft maintenance-repair facilities, cement, etc. It is a scaffolding system that can be
used in production plants, construction areas such as tunnel dams and in all kinds of facade works. It provides a
very safe and feasible working environment.

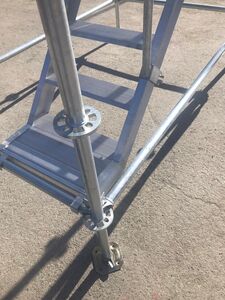

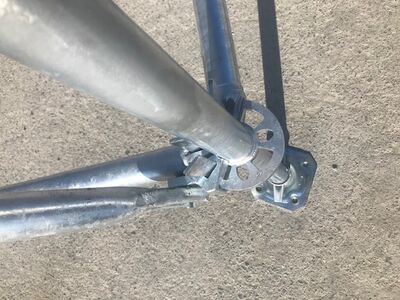

The flanged scaffolding consists of a vertical connection element with eight versatile ports, called
"flanges", which are securely and firmly welded on vertical components, thanks to the unique connection
technique, and horizontal connection elements with a steel casting dovetail locking mechanism.
8 horizontal or cross connection elements can be mounted on each flange of vertical fasteners from
different directions. This system gives horizontal elements 360 degrees of movement around a perpendicular.
Thus, it provides a practical work flow by adapting to all kinds of indentations and projections on the
building surface. System security is at the highest level with horizontal fasteners, cross fasteners and heels,
which are produced in accordance with all kinds of flanges. This system is very easy to install and disassemble
by two people. The connection to the flange is made with the passage of the dovetail only with the help of a
500 gr hammer and tightened with a wedge.
It can also be used as a mobile scaffolding with the help of wheels added to the lower adjustment
shafts. Thanks to the strong connections, there is no risk of the scaffolding and overturning.
