CUP-LOCK TYPE SCAFFOLDING SYSTEM-664

Product Code: FINCANLI TIP CEPHE VE YÜK ALTI ISKELE SISTEMI

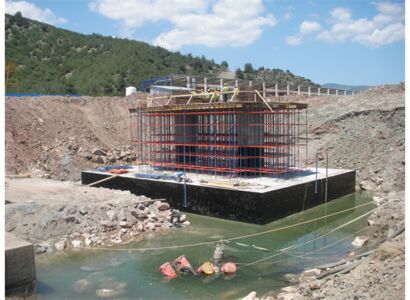

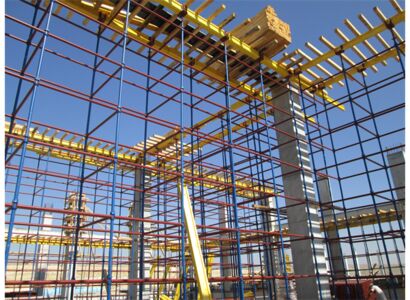

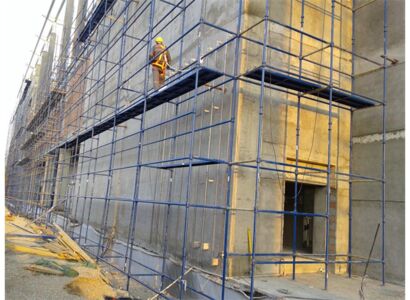

Cup-Lock scaffolding system can be used both as high load bearing capacity, under mold shoring scaffold and as facade workon scaffold. It is a highly resistant and safeload bearing system used at applications like heavy slabs and high structures. It is very simple to erect and dismantle. Erection and dismantle are made by usage of a hammer in a serial
manner. Since all parts stays attached to system, there is no risk of being lost. It provides a speedy and safe connection possibility. Connections of horizontal and vertical components can be enabled easily without need of any wedge or nut. By the help of the upper and lower adjustable jacks, height adjustment can be done easily. System consist of props with upper and lower cups and horizontal components with forged head ends which prevents twisiting of props. Cups are made from
5mm thick sheetiron and welded to props. These cups have nodular casted mobile caps over them which provides interlocking of horizontal components. Since a rigid system is assembled by horizontal and vertical component’s connections, twisting resistance, high load bearing capacity and safe scaffold erection provided. For example, Prop with 50cm cup gaps that connected from 4 sides by horizontal components has 60KN axial load bearing capacity. Props with 100cm cup gaps has 50 kN axial load bearing capacity approximately.
