Flat Surface Labeling Machine - MT-100SH-30911

Product Code: Düz Yüzey Etiketleme Makinesi - MT-100SH

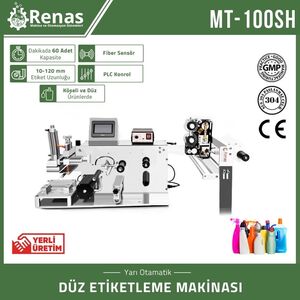

Flat Surface Labeling Machine - MT-100SH
General Features of MT-100SH - 10-120mm Labeling Machine

It is designed for labeling angular and flat product packages. It also meets the double-sided labeling needs of flat or full corner packages.
During operation, the label is peeled off the transfer paper and then the peeled label is transferred to the adhesive container with the help of a vacuum pump. The label detaches from the coil and transfers onto the adhesive container. This label is attached to the packaging according to the alignment barriers that were previously adjusted to the packaging.
In single-sided labeling, an average of 35-40 labels per minute are made.
It is a 100% domestic production machine.
Optional features can be added upon request.
Label changes and settings can be made very easily. It can be started to work on a different label type every few minutes.
The vacuum motor of the MT-100SH flat labeling machine works extremely quietly. It provides high performance thanks to its powerful engine.
It is a very low and air consuming machine in A ++ class. It does not cause environmental and noise pollution.
The control of the machine is provided by the PLC control screen. The machine is driven by a step motor.
Thanks to the fiber optic sensor, the machine always finishes the labeling as set.
Fiber optic sensor of MT-100SH flat labeling machine does not work in accordance with transparent labels. However, if desired, the machine can be adapted to transparent labels by making changes in its design.
It is a type of labeling machine that does not require installation by the service. It is only necessary to connect its electricity and air to start the machine.
It is guaranteed for 1 year against factory faults.
With this machine developed in accordance with the occupational safety law, you can perform labeling operations in accordance with hygiene rules.
Optional Features That Can Be Added To MT-100SH - 10-120mm Labeling Machine

In addition to the features of the MT-100SH flat labeling machine, you can add different features you need to the machine. These optional features are as follows:

Depending on your needs and demands, the points in contact with the product can be produced from a different material.
Optionally, a counter showing labeling information can be added.
It can be produced in accordance with the situations where you need to work at different voltages.
With the TP option, it can be easily worked on transparent labels.
Thanks to the SP option, you can customize the machine according to many other needs.
MT-100SH Labeling Machine - 10-120mm - Other Details

The delivery time of the machines for which additional (optional) features are requested is in the range of 5-20 days.
Packaged suitable for long distance shipping.
Thanks to the cargo company we have contracted, the product is transported at an affordable price. If your company has a contracted cargo company, you can choose to use that cargo.
1 year warranty is given against factory faults.
