Thermoform Vacuum / Modified Atmosphere Packaging (MAP) Machine for Seafood-46121

Product Code: CM4

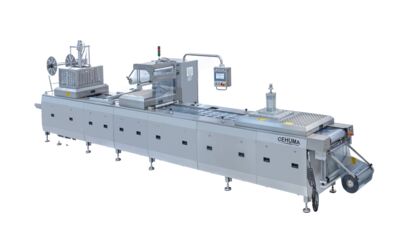

CEHUMA CM series thermoformers are basically for automatic vacuum and MAP (modified atmosphere packaging) applications and very often used in dairy, meat, poultry, seafood, dried fruits and vegetables, bakery, medical and so on. The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm.

Cehuma CM Series are quite excellent suit to seafood packaging demands offering both Vacuum and modified atmoshpere packaging. Particularly modified-atmosphere packaging is decreasing the microbial growth and enzymatic degradation therefore increasing the product shelf life. The principal gas used in modified-atmosphere packaging (MAP) is carbon dioxide. However, other gases, such as oxygen, are often added to prevent undesirable color changes.

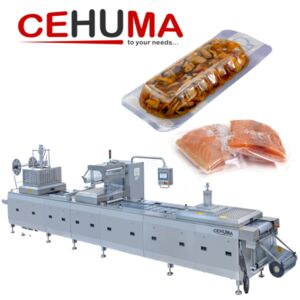

Our CM Series machines offering automatic vacuum and modified atmosphere packaging for frozen or unforzen fish, mussels, crabs, schrimps, salmon fillets, fish fillets and the other seafood products.
Technical Specifications
• Capacity (Cyc/min) | 5-12
• Web Width (mm) | 180-600
• Bottom Web Material | Flexible/Rigid
• Top Web Material | Pa+Pe/AL/Tyvek
• Machine Length (mm) | 3500-9500
• Forming Depth (mm) | 60-150
• Energy Consumption (kW) | 8-38
• Electric Suppy (3x380V. 50 Hz)
• Air Pressure (Bar) | 6-8
• Cooling Water (C) | 10-16
Advantages
• Corrosion-Resistant Gripper Chain
• Entire Stainless Steel Structure
• Modular Construction
• Programmable Advance Speed
• Multi-Language Selection
• Safety Standards According to "EC" Regulations
• Large Touch Screen
Options
• Flexible / Rigid Film
• Vacuum / MAP (modified atmosphere packaging) Application
• Dosing and Product Loading Systems
• Coding and Printing Systems
• Metal Dedectors / Check Weighers
• IP65 Level of Protection
• Printed Film Registration Top Film
