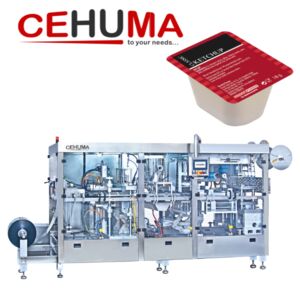

Thermoform Fill Seal Machine for Ketchup & Mayo-46134

Product Code: YZ4

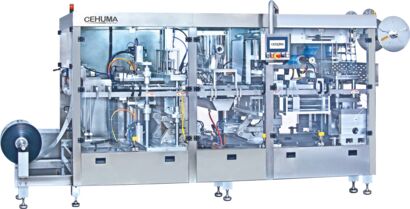

YZ thermoforming machines are mainly used for automatic filling and sealing applications and are often used for filling and sealing products such as water, fruit juices, ketchup, mayonnaise, honey, jam, chocolate spread, peanut butter, cream cheese, coffee, milk, yogurt, etc. The machine is chain-driven, meaning that the forward movement of the plastic film is achieved through a mechanical cam system that provides very high output performance of up to 35 revolutions per minute.

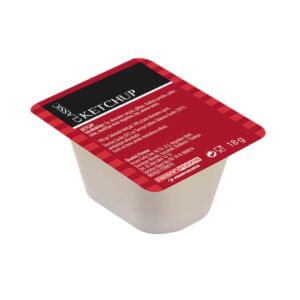

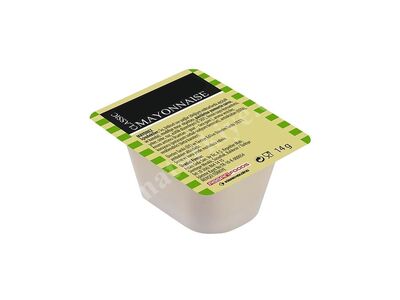

Also known as horizontal filling and sealing machines, the Cehuma YZ Series is also very suitable for automatic filling of viscous liquids such as ketchup, mayonnaise, honey, jam, yogurt, cream cheese, chocolate cream, marmalade, sauce, sesame oil, etc. Food safety is again very critical in viscous fluids because they are minimally processed before packaging, which makes them susceptible to microbial growth. Therefore, the selection of the correct thermoforming filling and sealing machines is very important for this product group. Cehuma's horizontal filling and sealing machines provide optimum performance with high hygiene standards for food products such as ketchup, mayonnaise, honey, jam, yogurt, cream cheese, chocolate cream, marmalade, sauce, sesame oil, etc. We also offer our customers a complete turnkey solution, including end-of-line robots to place, wrap, shrink, and prepare each product for shipment. Finally, the use of PS or related films at the bottom and aluminum foil on top is quite common.

Technical specifications:
• Capacity (Strokes/min) | 15-35
• Index (Step) (mm) | 70-200
• Bottom Film Width (mm) | 150-500
• Bottom Film Thickness (m) | 550-1200
• Bottom Film Material | PVC/PET/PS/PP
• Top Film Material | AL+PET
• Machine Length (mm) | 5,500-11,000
• Power Consumption (kW) | 8-25
• Electric Power Supply | 3x380V, 50 Hz.
• Compressed Air Requirement (Bar) | 6-8
• Cooling Water (C) | 10-16

Advantages:
• Stainless Steel Structure
• Servo Technology
• Safety Standards Compliant with EC Regulations
• Wide Range of Packaging Design Options
• Programmable Forward Speed
• Wide Touch Screen
• Multi-Language Option
• Precise Dosing
• Advanced Cutting/Perforation Technology
