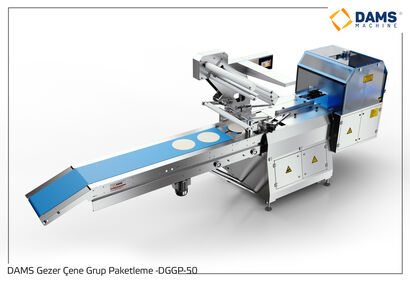

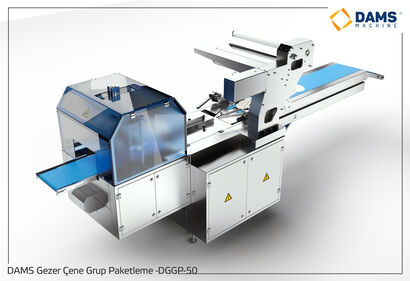

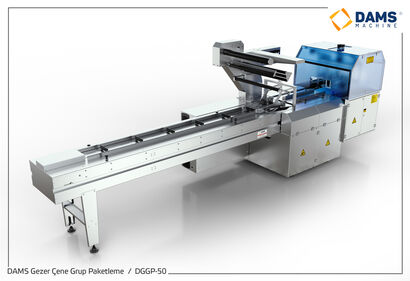

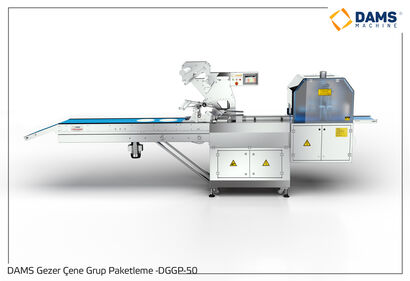

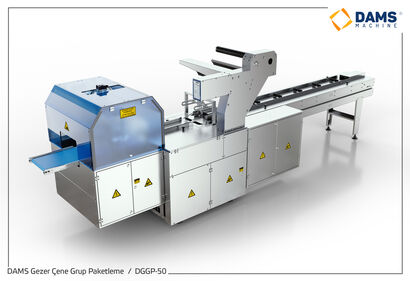

DAMS- Mobile Jaw Group Packaging Machine-41704

Product Code: DGGP-50

TECHNICIAL SPECIFICATIONS
MAX. POWER 4 Kw
VOLTAGE 380 V
MAX. CURRENT 25 A
KONTROL PLC-Touch Screen
Compressor Air Requirement 5-6 Bar

MACHINE FEATURES
CAPACITY MAX. 40 adet/dk.
MACHINE WIDTH 1055 mm
MACHINE LENGTH 5095 mm
MACHINE HEIGHT 1685 mm
MACHINE WEIGHT 570 Kg
PACKAGE WIDTH 60 - 250 mm
PACKAGE LENGTH 200- 600 mm
PACKAGE HEIGHT 20-130 mm
MAX. BOBBIN WIDTH 700 mm
MAX. Cellophane COIL DIAMETER 350 mm
INTERNAL DAMETER OF THE BOBİNE 3 "

GENERAL FEATURES
Sandwiches and burgers which are coming from the cooling unit are placed between the alignment units by two staff manually or automatically with unmanned feeding system.
The aligned products are divided into groups of 4.5 and 6, thanks to two valves.
The number of products is controlled by the sensors during the separation of the products and the control continues until it is finished.
If desired; the slicing process takes place with the slicer system and the products reach the packaging for all grouped products.
The products that reach the packaging are transferred to the relevant unit through the robot arm.
The packaging unit is controlled by a single servo motor.
PLC is controlled from the screen. All settings, product status, performance, errors and warnings are monitored from this screen.
During packaging, it stops automatically when it does not see the product and prevents waste of empty packages.
Thanks to the spot-controlled photocell, there is no package loss.
Uses the mobile jaw system
All surfaces are made of food grade 304 Cr-Ni materials.
