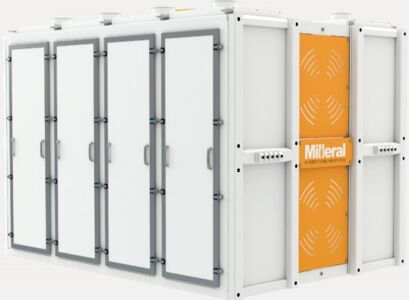

QUADRO PLANSIFTER-122

Product Code: MQP

• The sieve frames are made of high grade plywood, imported from Siberia, with high resistance against humidity.
• The insert frames are made of laminated / tempered first class pine.
• The clothing is first class from world leader producers.
• The clothes are glued on insert frames by best quality, made in EU glues.
• The sieve cleaners are polyurethane in different types.
• Compartments and sieve frame numbers are marked on by laser for easy and quick access and to prevent confusion during maintenance and cleaning.
• Easy-to-install and remove sieve frames.
• Hanging rods, made of oscillation-resistant fiberglass ensure stable and secure suspension of the plansifter.
• Sieve Cleaner bottom trays are made of stainless steel for both wooden and aluminium frames while galvanized wire mesh is only applicable for wooden frames.
• Nylon sieves, Sieve Cleaners, Hanging Rods, Sleeves and 5% spare insert frames are included.
1
SIEVE BOX TIGHTENING MECHANISM
No stock leakages thanks to prefectly designed tightening mechanism.

2
STEEL CONSTRUCTION CHASSIS
Made of steel sheet that is durable against vibration.

3
DOOR KNOBS
Designed to close plansifter doors tightly.

4
ALUMINUM-FRAME ISOLATED DOOR
Easy dismantling for a quick access sieve boxes.

5
WEIGH BALANCE SPRING
Load is distributed on ball bearings uniformly.

6
SUSPENDING RODS TIGHTENING MECHANISM
The plansifter is hanged/suspended with fiberglass rods.

7
STAINLESS STEEL AND HEAT ISOLATION IN SIFTER CHANNELS (OPTIONAL)
It is applied to avoid product sticking and building up due to air & water condensation in inner parts of the sifter. Suitable for food grade, hygienic surface.

8
STAINLESS STEEL PRODUCT INLET AND CONTROL PIPES
The pipes are configured for sanitary product transfer.

9
SIFTER TIGHTENING BOXES
It tightens the sieve boxes by vertical pressing and regulates

10
ISOLATION ELEMENTS
Isolates the sieve boxes perfectly to prevent the mixture of different flour/bran stocks.

11
OUTLET PIPES
The outlet pipes are designed for a sanitary product transfer.
