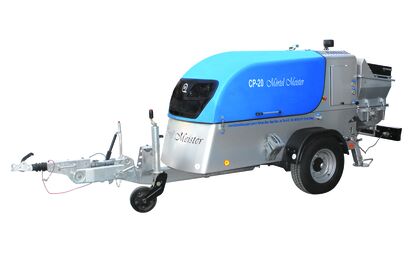

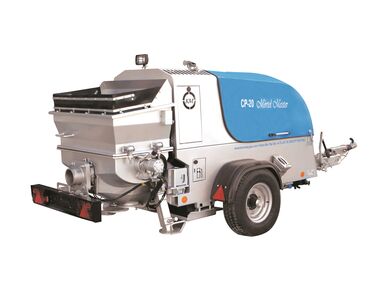

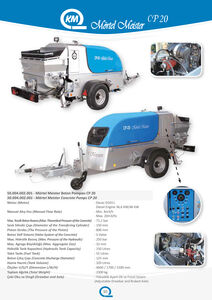

Concrete Pump-27725

Product Code: MM CP 20

Motor (Motor) : Deutz D2011
Diesel Engine 36,6 KW/46 KW
Manuel Akış Hızı (Manual Flow Rate) : Min. 4m3/h
: Max. 20m3/hс
Max. Teorik Beton Basıncı (Max. Theoretical Pressure of the Concrete) : 71,1 bar
Sevk Silindir Çapı (Diameter of the Transfering Cylinder) : 150 mm
Piston Stroku (The Pressure of the Piston) : 800 mm
Beton Valf Sistemi (Valve System of the Concrete) : S-Valve
Max. Hidrolik Basınç (Max. Pressure of the Hydraulic) : 250 bar
Max. Agrega Büyüklüğü (Max. Aggregate Size) : 32 mm
Hidrolik Tank Kapasitesi (Hydraulic Tank Capacity) : 150 Litres
Yakıt Tankı (Fuel Tank) : 55 Litres
Beton Çıkış Çapı (Concrete Discharge Diameter) : 125 mm
Hazne Hacmi (Tank Volume) : 320 Litres
Ölçüler U/G/Y (Dimension L/W/H) : 4600 / 1700 / 1500 mm
Toplam Ağırlık (Total Weight) : 2300 kg.
Çeki Oku ve Dingil (Drawbar and Axle) : Yükseklik Ayarlı Ok ve Frenli Sistem
(Adjustable Drawbar and Braked Axle)
