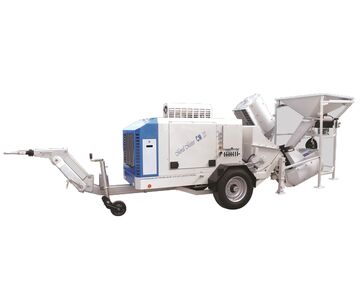

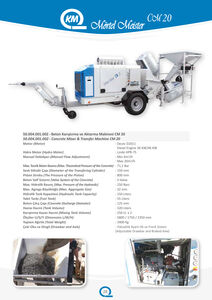

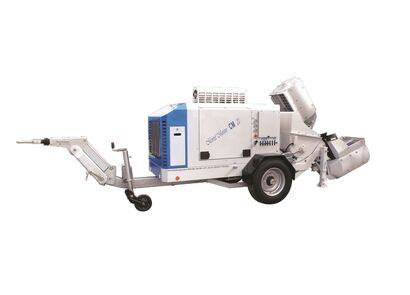

Concrete Batching and Pumping Machine-27724

Product Code: MM CM 20

Motor (Motor) : Deutz D2011 Diesel Engine 36 KW/46 KW
Hidro Motor (Hydro Motor) : Linde HPR-75
Manuel DebiAyarı (Manuel Flow Adjustment) : Min 4m3/h
: Max 20m3/h
Max. Teorik Beton Basıncı (Max. Theoretical Pressure of the Concrete) : 71,1 Bar
Sevk Silindir Çapı (Diameter of the Transfering Cylinder) : 150 mm
Piston Stroku (The Pressure of the Piston) : 800 mm
Beton Valf Sistemi (Valve System of the Concrete) : S-Valve
Max. Hidrolik Basınç (Max. Pressure of the Hydraulic) : 250 Bars
Max. Agrega Büyüklüğü (Max. Aggregate Size) : 32 mm
Hidrolik Tank Kapasitesi (Hydraulic Tank Capacity) : 150 Liters
Yakıt Tankı (Fuel Tank) : 55 Liters
Beton Çıkış Çapı (Concrete Discharge Diameter) : 125 mm
Hazne Hacmi (Tank Volume) : 320 Liters
Karıştırma Kazan Hacmi (Mixing Tank Volume) : 250 Lt. x 2
Ölçüler U/G/Y (Dimension L/W/H) : 5800 / 1750 / 2350 mm
Toplam Ağırlık (Total Weight) : 3400 Kg
Çeki Oku ve Dingil (Drawbar and Axle) : Yükseklik Ayarlı Ok ve Frenli Sistem
(Adjustable Drawbar and Braked Axle)
