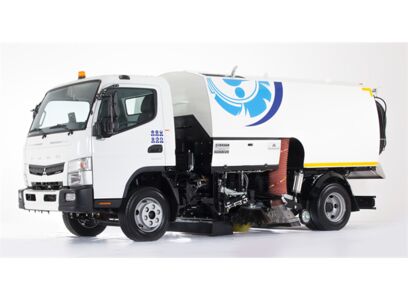

4 M3 TRUCK MOUNTED ROAD SWEEPING MACHINE-417

Product Code: VKM.4000

Sweeping Speed (km/h) 10 (max.)
Sweeping Width (mm) 2100
Sweeping Capacity (m2/h) 21000
Hopper Tank Capacity (m3) 4
Water Tank Capacity (liter) 750
Hydroulic Oil Tank Capacity (liter) 80
Water Tank Material Stainless Steel
Machine Length (mm) 3800
Machine Width (mm) 2140
Machine Height (mm) 1660
Empty Total Weight (kg) 3800
Water Pump(bar-liter) 20lt/min Max.100bar
Discharge Angle 45°
Discharge Height (mm) 650 mm (nom) chassis dependent
Side Brush Diameter (mm) 320
Middle Brush Diameter (mm) 400
Middle Brush Length (mm) 1240
Number of Water Nozzle 23
Rear Scution Hose Diameter (mm) 150
Rear Suction Hose Length (mm) 5000
Auxiliary Engine Type Dizel
Auxiliary Engine Power (kW) 75
Fan Drive Type Mechanical
Side Suction Hose Diameter (mm) 220
Side Brush Life Expectancy 300 accumulated working hours
Middle Brush Life Expectancy 150 accumulated working hours
Minimum Gross Weight (kg) 7000
Wheel Base (mm) 3350-3500

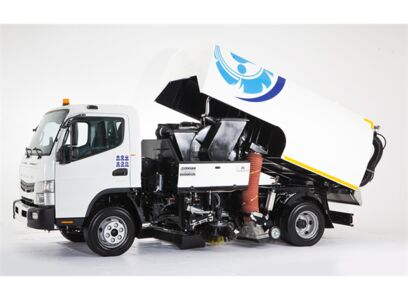

Rear Door Opening Angle 80°
Mesh Filter Surface Area (m2) 1,09
Front Washing System Optional
Dual Suction System Optional
High Pressure Washing System Optional
Additional Filter System Optional
In Cab Noice <(dB) <75 dB
