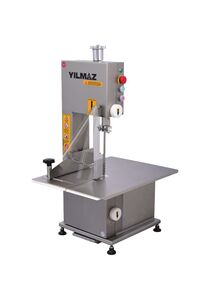

BONE CUTTING MACHINE SPECIFICATIONS KTP 184 Ø 1840 mm STAINLESS BONE CUTTING SAW (THREE-PHASE)-41306
Product Code: KTP-184
BONE CUTTING MACHINE SPECIFICATIONS
KTP 184 Ø 1840 mm STAINLESS BONE CUTTING SAW (THREE-PHASE)
PRODUCT FEATURES;
Engine power ; 1,1 Kw 1,5 Hp 400Volt 50 Hz.
Width : 710 mm
Length :680 mm
Height :1030 mm
Net weight ;76 Kg
Table dimensions ; 495x635 mm
Cutting height ; 0-270 mm
Cutting width ; 0-180 mm
Revolution ; 1400rpm
Manufactured for set-top use.
The cutter saw is made of 1042 steel.
The saw features cutting thickness adjustment.
A product pusher apparatus is available for security.
The pusher apparatus is made of grade 304 stainless steel sheet.
Machine’s outer body, front cover, meat cutting table bottom chassis table and engine protection sheet are made of grade 304 stainless sheet material.
There is a sliding chip box under the bottom table.
There are 2 red cast pulleys for preventing darkening of the meat during cutting.
Upper pulley bedding system: on 2 stainless steel shafts, there is a portable suspended system to which the upper system is connected.
Band saw stretching system: There is a special design lock stretching system which prevents rupture of the band during stretching of the band saw.
Upper pulley adjustment: There is an angle adjustment screw on the exterior surface of the body by which the upper pulley angle adjustment can be easily made.
Start button: On the control box attached to the side surface of the machine, there is 1 start button and 1 stop button and 1 emergency stop button.
There 1 switch which disconnects the machine thus preventing its operation when the front cover is opened.
The locking system of the machine front cover features 2 rotating system locks.
Working table: made of 3mm thick grade 304 stainless steel sheet.
The machine has 1,1KW 1.5 HP 50HZ 400VOLT electric engine with BRAKE.
The machine has a hand protection apparatus used during meat cutting process.
Manufactured with three-phase and mono-phase engine.
This is a table-top model machine.
