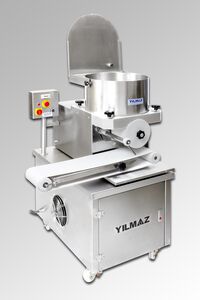

MEATBALL AND HAMBURGER SHAPING MACHINE -41299

Product Code: KH-120

MEATBALL AND HAMBURGER SHAPING MACHINE
• Engine power; 0,75 Kw 1Hp 380Volt 50 Hz.
• Chamber capacity; 20 kg
• Dimensions;
 Width : 950 mm
 Length : 880 mm
 Height : 1335 mm
• Net weight ; 215 Kg
• Made of stainless steel and aluminium ETAL 171 erosion resistant materials.
• The machine is driven by reducer and has 0,75 kw 1 hp 380 volt 50 three-phase engine but operates with 220 volt electric energy.
• The machine operates between 25 and 40 rpm.
• The machine incorporates a silent compressor system inside the machine bottom stand supplying air to scraping wire system.
• The product chopping (scraping) wire of the machine is driven by pneumatic system.
• The machine has a stainless steel control panel.
• On the stainless steel control panel, there is a counter which enables counting the product one by one, as well as an emergency stop button, speed adjustment key, turn on/off button.
• There is a main switch on the chassis where the compressor system is positioned.
• Product supply upper chamber cover is made of Grade 304 chromium nickel stainless sheet.
• Inside the product supply upper chamber, there is 1 stainless carrier (mixer) pallet.
• For security on upper chamber, there is a sensor which would stop the machine when the chamber cover is open, and restart the machine when the cover is closed.



• Inner diameter : 430 mm
• Height : 250 mm
• Chamber capacity : 20 kg
• 1 conveyor belt of 180 x 1800 mm dimensions.
• 1 stainless steel conveyor belt sheet.
• The bottom stand (chassis) is made of grade 304 stainless material.
• There is a bidirectional cover on the bottom stand (chassis) where the compressor system is positioned.
• The bottom chassis incorporates 2 stable and 2 rotating wheels.
• Machine is easily cleanable as the parts are detachable.
• Meatball moulds can be weight-adjusted.
• Meatball moulds are made of polyethylene material.
• Meatball apparatus front cover is made of polyethylene material.






Meatball mould capacities;
DEPENDING ON SPEED ADJUSTMENT MINIMUM MEDIUM MAXIMUM
Hamburger meatball apparatus capacity/hour(single mould) 1200 pcs 1600 pcs 1800 pcs
Kayseri meatball apparatus capacity/hour(single mould) 1200 pcs 1600 pcs 1800 pcs
Adana meatball apparatus capacity/hour(double mould) 1200 pcs 1600 pcs 1800 pcs
Tray meatball apparatus capacity/hour(single mould) 1200 pcs 1600 pcs 1800 pcs
Kadınbudu meatball apparatus capacity/hour(double mould) 2400 pcs 3200 pcs 3600 pcs
Grill meatball apparatus capacity/hour(double mould) 2400 pcs 3200 pcs 3600 pcs
Medallion meatball apparatus capacity/hour(double mould) 2400 pcs 3200 pcs 3600 pcs
Islama meatball apparatus capacity/hour(double mould) 2400 pcs 3200 pcs 3600 pcs
Cheese meatball apparatus capacity/hour(double mould) 2400 pcs 3200 pcs 3600 pcs
Sour meatball apparatus capacity/hour (triple mould) 3600 pcs 4800 pcs 5800 pcs
Short Inegöl meatball apparatus capacity/hour (triple mould) 3600 pcs 4800 pcs 5800 pcs
Long Inegöl meatball apparatus capacity/hour (triple mould) 3600 pcs 4800 pcs 5800 pcs



MOULD DIMENSIONS
Triple sour meatball apparatus 30 mm
Short Inegöl meatball apparatus 75 x 20 mm
Long Inegöl meatball apparatus 90 x 20 mm
Cheese meatball apparatus 70 x 53 mm
Islama meatball apparatus 80 x 34 mm
Medallion meatball apparatus 50 mm
Grill meatball apparatus 70 x 40 mm
Kadınbudu meatball apparatus 85 x 50 mm
Tray meatball apparatus 90 x 90 mm
Adana meatball apparatus 108 x 45 mm
Kayseri meatball apparatus 75 mm
Hamburger meatball apparatus
