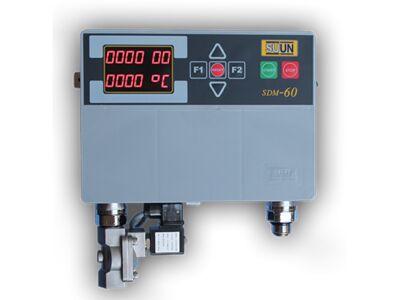

SDM-60 WATER DOSEING UNIT-7994

Product Code: EL01

It is a dosing product that automatically takes the water to be used in the product forming process on a liter basis. The device automatically receives the amount of water entering the screen and shuts down the system. It shows the degree of water taken during the process. It also saves the total amount of water stored in the memory and provides the possibility to see it later.

TECHNICAL SPECIFICATIONS
Supply Voltage: 220V (AC)
Power: 20W
Control Voltage: 220V (AC)
Control Type: Solenoid Valve
Working Pressure: 0 - 10 Bar
Test Pressure: 10 Bar
Maximum Working Temperature: 50 Degrees
Display Type: 7 SEG Display
Flow rate (max): 60L / min
Input Connection Dimension: 3/4 "
Capacity: 0-999.9 Liters
Keypad: Membrane Switch
Calibration: Yes
Additional Equipment: Sediment trap filter, power cable, outlet hose, connecting screw
Dimensions (mm): 280 x 300 x 100
