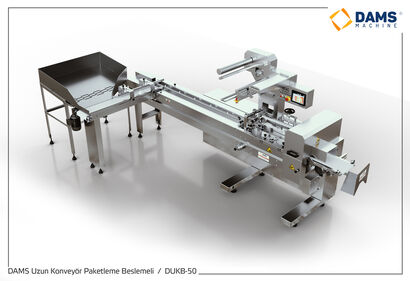

DAMS Long Conveyor Packaging Machine With Feeding-41701

Product Code: DUKB-50

TECHNIKAL FEATURES
MAKS. POWER 3 Kw
VOLTAGE 380 V
MAX.CURRENT 25 A
KONTROL PLC-Touch Screen
Compressor Air Requirement 5-6 Bar

MACHİNE FEATURES
CAPACITY MAX. 180 pcs/mn
MACHİNE WIDTH 1920 mm
MACHİNE LENGTH 4150 mm
MACHİNE HEIGHT 1690 mm
MACHİNE WEIGHT 950 Kg
PACKAGE WIDTH 20 - 140 mm
PACKAGE LENGHT 100- 250 mm
PACKAGE HEIGHT 20 - 60 mm
CAPACITY MAX. 180 pcs/mn
MAX. BOBBİN WIDTH 500 mm
CELLOPHANE BOBBİN DIAMETER MAX. 350 mm
BOBBİN INTERNAL DIAMETER 3 "

GENERAL SPESIFICATIONS
Roll, Sandwich Hamburger and similar sized products and Francala Bread are individually wrapped.
Our machine has a servo motor system.
Thanks to the touch screen and PLC on the machine, product package length, photocell adjustment and machine speed can be adjusted as desired.
There is a sensor control system that prevents jamming of the product. If the product location is not correct, it stops the machine.
All surfaces and covers that are in contact with the product in the machine are made of 304 quality chrome-nickel metal.
Rotating jaw system.
It packs 115 products per minute (roll, sandwich hamburger and similar products), and 83 products per minute in Francala Bread.
It easy to use.
Optionally, it is produced so that a coding device can be mounted on the machine.
Cellophane bobbin is easy to disassemble and install, the place where it is mounted is an air system and PLC controlled shaft.
Since the bottom sealing system of the packaging is pneumatic and PLC controlled, the settings of the packaging material are made without wasting time.
