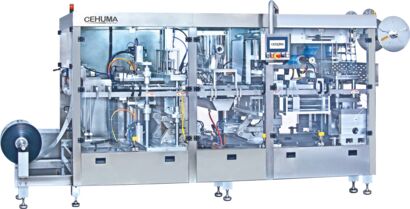

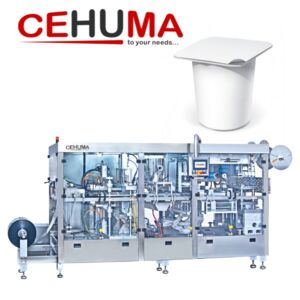

Thermoform Fill Seal Machine for Fruit Yoghurt-46137

Product Code: YZ7

YZ thermoforming machines are primarily designed for automatic filling and sealing applications and are frequently used for filling and sealing water, fruit juices, ketchup, mayonnaise, honey, jam, chocolate spread, peanut butter, cream cheese, coffee, milk, yogurt, and other products. The machine is chain-driven, which means that the plastic film's forward movement is achieved by a mechanical cam system that can achieve very high output performance of up to 35 cycles per minute.

Also known as horizontal filling and sealing machines, the Cehuma YZ Series is also well-suited for automatic filling of viscous liquids such as ketchup, mayonnaise, honey, jam, yogurt, cream cheese, cream chocolate, marmalade, sauce, sesame oil, and other similar products. Food safety is critical for viscous liquids, as they are minimally processed before packaging, which makes them susceptible to microbial growth. Therefore, choosing the right thermoforming filling and sealing machines is crucial for this product group. Cehuma horizontal filling and sealing machines provide optimum performance with high hygiene standards for food items such as ketchup, mayonnaise, honey, jam, yogurt, cream cheese, cream chocolate, marmalade, sauce, sesame oil, and other products. We also offer our customers a complete turnkey solution, including end-of-line robots to put, wrap, shrink and prepare each product in cardboard boxes for shipment. Finally, the use of PS or related films at the bottom and aluminum foils on top is quite common.

Technical specifications
• Capacity (cycles/min) | 15-35
• Index (step) (mm) | 70-200
• Bottom Film Width (mm) | 150-500
• Bottom Film Thickness (m) | 550-1200
• Bottom Film Material | PVC/PET/PS/PP
• Top Film Material | AL+PET
• Machine Length (mm) | 5,500-11,000
• Power Consumption (kW) | 8-25
• Electrical Supply | 3x380V. 50 Hz.
• Compressed Air Requirement (Bar) | 6-8
• Cooling Water (C) | 10-16

Advantages
• Stainless Steel Construction
• Servo Technology
• Compliance with EC Regulations Safety Standards
• Wide Packaging Design Options
• Programmable Advance Speed
• Large Touch Screen
• Multi-Language Options
• Precise Dosing
• Advanced Cutting/Embossing Technology
