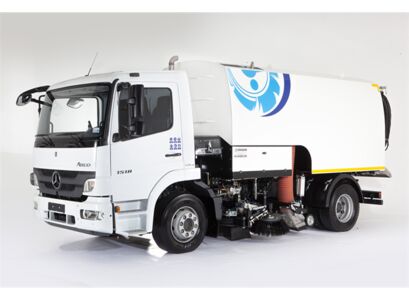

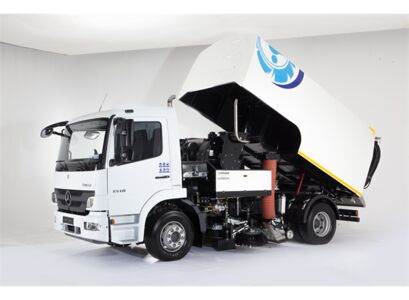

6-7 M3 TRUCK MOUNTED ROAD SWEEPING MACHINE-420

Product Code: VKM.6000 - VKM.7000

Sweeping Speed (km/h) 10 (max.)
Sweeping Width (mm) 2150
Sweeping Capacity (m2/h) 21500
Hopper Tank Capacity (m3) 6
Water Tank Capacity (liter) 1600
Hydroulic Oil Tank Capacity (liter) 80
Water Tank Material Stainless Steel
Machine Length (mm) 4400
Machine Width (mm) 2300
Machine Height (mm) 2040
Empty Total Weight (kg) 4300
Water Pump(bar-liter) 20lt/min Max.100bar
Discharge Angle 45°
Discharge Height (mm) 650 mm (nom) chassis dependent
Side Brush Diameter (mm) 400
Middle Brush Diameter (mm) 400
Middle Brush Length (mm) 1240
Number of Water Nozzle 23
Rear Scution Hose Diameter (mm) 150
Rear Suction Hose Length (mm) 5000
Auxiliary Engine Type Dizel
Auxiliary Engine Power (kW) 75
Fan Drive Type Mechanical
Side Suction Hose Diameter (mm) 220
Side Brush Life Expectancy 300 accumulated working hours
Middle Brush Life Expectancy 150 accumulated working hours
Minimum Gross Weight (kg) 15000
Wheel Base (mm) 3500-3800
Rear Door Opening Angle 85°
Mesh Filter Surface Area (m2) 1,09
Front Washing System Optional
Dual Suction System Optional
High Pressure Washing System Optional
Additional Filter System Optional
In Cab Noice <(dB) <75 dB
