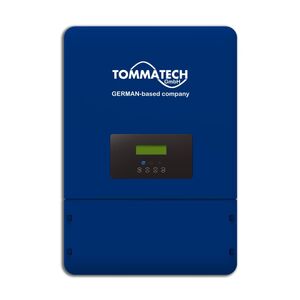

TOMMATECH TRIO-HYBRID 50.0 THREE PHASE STRING INVERTER-39235

Product Code: TTTRIO5.0

The new generation Tommatech Trio-Hybrid Three Phase Inverter Series offers flexible and easily applicable solutions for both residential and commercial applications. With its wide MPPT voltage range from 180V to 950V, it provides maximum efficiency of 97.8%, making it possible to produce solar energy at the highest level. In addition, for commercial applications, with parallel connection of multiple inverters, more power output can be achieved with storage options suitable for the system.
Compact systems can also be created. In addition, the inverters have a Wi-Fi option for remote monitoring.

DC INPUT:
Maximum PV Array Power (Wp): 7500
Maximum DC Voltage (V): 1000
Rated DC Operating Voltage (V): 720
Maximum Input Current (A): 12/12
Maximum Short Circuit Current (A): 14/14
MPPT Voltage Range (V): 180-950
Switching Voltage (V): 180
Number of MPPTs: 2
MPPT Array Input Number: 1/1

DC OUTPUT:
Battery Voltage Range(V): 160-800
Maximum Continuous Charge/Discharge Current (A): 25
Communication Interface: CAN/RS485
Reverse Binding Protection: YES

YIELD:
MPPT Efficiency (%): 99.9
European Efficiency(%): 97.0
Maximum Efficiency(%): 97.8

PHYSICAL PROPERTIES:
Dimensions (mm): 457x654x228
Weight(kg): 45
Standard Warranty (Year): 5 (Extendable)
