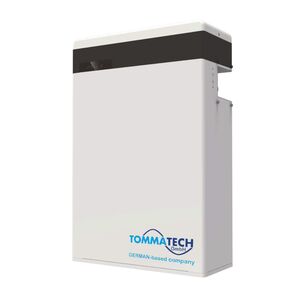

TOMMATECH HIGHTECH POWER GENERAL PACK 5.8 KWH LITHIUM BATTERY-39239

Product Code: TTGENERALPACK5.8KWH

Tommatech's new High Power Lithium Battery Series offers high voltage battery solutions in hybrid (on-grid & off-grid) systems. Hightech Power 5.8kWh Li-Ion Battery Series with 5.8kWh capacity offers a total storage capacity of up to 23 kWh by combining the General Pack battery with the new generation internal BMS (Battery Management System) technology and the Booster Pack batteries, connecting up to 4 in series. are available. An uninterrupted and compact energy system concept is presented with Tommatech Uno and Trio Hybrid Series Inverters.
High Power Series Lithium Batteries with 90% discharge depth are a flexible, practical, high performance energy storage solution. At the same time, it has been designed with the concept of serial safe energy with new generation LFP technology.

Rated Voltage(V): 115.2
Operating Voltage(V): 100-131
Battery Type: Li-Ion (LFP)
Total Capacity (kWh): 5.8
Usable Capacity (kWh): 5.2
Faradaic Charge Efficiency (%): 99
Battery Round-Round Energy Efficiency(%): 95
Standard Power(kW): 2.9
Maximum Power:(kW): 3.5
Recommended Charge/Discharge Current (A): 25
Maximum Charge/Discharge Current (A): 35
Short Circuit Current: 1440
Life Cycle: >6000 Cycles
Warranty (Year): 10

Protection Class: IP55
Communication (System-Inverter): CAN2.0
Communication (Battery-Battery):RS485

PHYSICAL PROPERTIES:
Dimensions (mm): 474x193x708
Weight(kg): 72.2
