SEMI-AUTOMATIC GRANULE PRODUCT FILLING MACHINE-27130

Product Code: RYD-G100

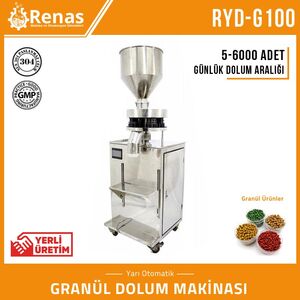

Semi Automatic Granular Product Filling Machine - RYD-G100
General Features of RYD-G100 - 1300 ml Granule Filling Machine
This machine, which has an ergonomic design, takes up very little space and helps you work with high efficiency. It can go up to around 5000-6000 production levels per day.
Our machine can successfully fill all granule form and high fluidity powder products.
With RYD-G100 semi-automatic granular product filling machine, in crystal products such as granulated sugar and salt; bean pulses such as lentils, chickpeas; hazelnuts, peanuts, peanuts with sauce etc. It is capable of filling smoothly in dried nuts and powder, flakes and granular spices.
All of the points that come into contact with the product are made of SUS 304 stainless steel material. In this respect, GMP and FDA offer a working environment that complies with food norms.
All automation and electrical infrastructure are designed in accordance with the labor security law. Grounding is available in the machine body. In addition, since all the automation parts used in the machine operate as 24 and 68V, it is an extremely safe machine against the risk of electric shock.

Measuring cups can be produced in different sizes from polyethylene, stainless steel or a different material suitable for your needs.
It is a PLC controlled granule filling machine. You can make all the settings for filling and working from the easy-to-use touchscreen operator panel. Our machine is equipped with much more superior features than similar machines. For example; From the number of laps tab in the easy-to-use menu, you can set that you will empty the measuring cup for each packaging. You can also adjust the speed of the turntable according to the flow of your product on the rotation speed tab in the easy-to-use menu. You can also set where the filling starts and ends from the measuring cup stop position adjustment buttons at the bottom of the easy to use menu. Finally, you can see how many you have produced with the counter in the easy-to-use menu; you can also reset it by pressing the reset button on the side.
RYD-G100 semi-automatic granular product filling machine basically has two different working modes. If you want, you can operate with pedal or in automatic mode.
The disc with measuring cups is controlled by the geared step motor inside the inside of our machine. For this reason, the sensitivity in filling is extremely high.
It is 100% domestic production. All parts of the machine and the movement group are all made in Turkey.
Thanks to the height adjustment of the filling tray in the machine, it can fill up to 40% more weight than the lowest level of the measuring containers you have made. For example, you can fill up to 140 grams in different weights by adjusting the height of the filling tray with a measuring cup of 100 g from your product. You can also fill in the upright layers of the measuring container you have made, without making a new measuring container. For example; With a 100 g measuring cup, you can make 300 g filling by making the number of turns 3 in the easy-to-use menu.
Thanks to the height adjustment on the filling support rack of the RYD-G100 semi-automatic granular product filling machine, you can loosen only 4 screws to match the height of your package.
Stock bunker takes approximately 45 liters of product. If you want to reduce your workmanship for the products you work in high weights, you can support our machine with feeding augers, conveyors and elevators that are produced by our company and sold at very affordable prices, which can be controlled from the operator panel and can fill automatically when the bunker decreases.
It is an extremely quiet machine. In this respect, it is a very useful machine especially for the manufacturing plants in the city and under the apartment.
It works with high precision and low wastage thanks to silicone scrapers.
Especially, if you use our machine together with FRD series machines for filling in bags, you can reach a capacity close to the speed of automatic packaging machines. Thanks to this pair, you will not experience high cost different collar obligations for every product you experience in packaging machines.
RYD-G100 - Optional Features that can be added to 1300 ml Granular Product Filling Machine
In addition to the features of RYD-G100 granular product filling machine, you can add different features you need to the machine. The main features of these optional features are as follows:

Different types of materials can be added to the points in contact with the product according to the needs.
It can be produced according to the situations where you need to work at different voltages.
Measuring cups can be produced in different sizes from polyethylene, stainless steel or a different material suitable for your needs.
If you wish, the discharge mouth can also be produced in different sizes to fit your packaging.
For products that flow from the measuring cups with the machine, but not through the stock bunker, you can add the option of the mixer option optionally available in our machine.
RYD-G100 - Granular Product Filling Machine - 1300 ml - Other Details

The delivery time of the machines, where additional (optional) features are requested, takes place within the range of 5-20 days.
It is packaged to be suitable for long distance cargo.
Thanks to the contracted cargo company, the transportation of the product is done at an advantageous price. If your company has a contracted cargo company, you can choose to use that cargo.
It is a 1 year warranty product against factory faults.
