AL/XLPE/PVC-41765

Product Code: NA2XY (YAXV) U1000 AR2V

YAXV(NA2XY)
0.6/1 kV Single or Multi core , Stranded Aluminium conductor, XLPE insulation LV power cables
Standard
TS IEC 60502-1, IEC 60502

Technical Data

Max.Operating Temperature: 90 ° C

Max.Short Circuit Temperature: 250 ° C

Rated Voltage:, 0,6/1 kV

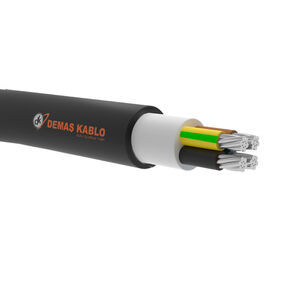

Construction

Aluminium conductor
XLPE insulation
PVC filler
PVC Outer sheath
Applications
Used as lighting and power cable . Installed in areas where severe mechanical demage is not expected . Can be laid in doors , out-doors,underground and in cable ducts
