NYCY-41759

Product Code: NYCY

YVC7V(NYCY)
0.6/1 kV Multi Core , Solid or Stranded copper conductor, PVC Insulation, concentric copper , LV Powe Cable
Standard
TS IEC 60502-1, IEC 60502

Technical Data

Max.Operating Temperature: 70 ° C

Max.Short Circuit Temperature: ≤ 300 mm² 160°C , >300 mm² 140 °C

Rated Voltage:, 0,6/1 kV

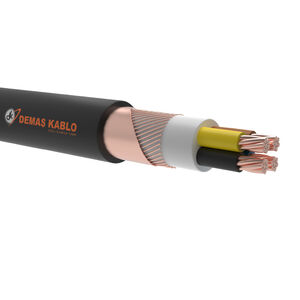

Kablo Yapısı

Solid or Stranded copper conductor
PVC insulation
PVC filler
Concentric copper conductor with copper tape binder.
PVC Outer Sheath
Application
It is used in industry, switchgear, underground facilities and the city network. The concentric conductor on the cable opens the switch or fuse connected to the network during any mechanical impact, preventing the energy in the cable from harming the environment.
