N2XCY-41763

Product Code: N2XCY (YXC7V)

YXC7V(N2XCY)
0.6/1 kV Multi Core , Solid or Stranded copper conductor, XLPE Insulation, concentric copper , LV Powe Cable
Standard
TS IEC 60502-1, IEC 60502

Technical Data

Max.Operating Temperature: 90 ° C

Max.Short Circuit Temperature: 250°C

Rated Voltage:, 0,6/1 kV

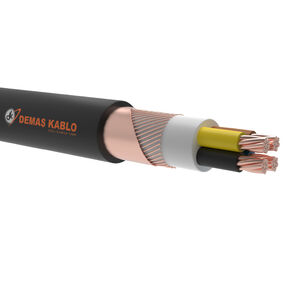

Construction

Solid or Stranded copper conductor
XLPE insulation
PVC filler
Concentric copper conductor with copper tape binder.
PVC Outer Sheath
Application
It is mostly used in city networks, street lighting, house connections, preferably underground. In case the cables are exposed to any impact, the concentric conductor opens the switch or fuse connected to the network, preventing the energy in the cable from harming the environment.
