CU/PVC/DSTA/PVC 0,6/1 kV-41760

Product Code: NYBY

YVZ4V(NYBY)

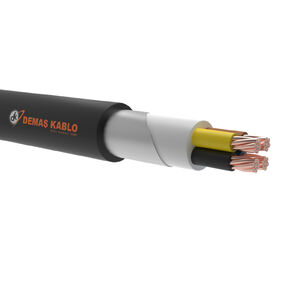

0.6/1 kV, Multi core,Solid or Stranded copper conductor, PVC Insulated, Galvanized steel tape Armour , PVC outer sheath LV power cables
Standard
TS IEC 60502-1, IEC 60502

Technical Data

Max.Operating Temperature: 70 ° C

Max.Short Circuit Temperature: 160 ° C

Rated Voltage:, 0,6/1 kV

Construction

Solid or stranded copper conductor
PVC insulation
PVC filler
Galvanized Steel tape Armour
PVC outer Sheath
Application
Is most suitable ares where mechanical damage is a possibility . Is laid outdoors , indoors underground and in ducts. If requested can be produced to resist saline environment
