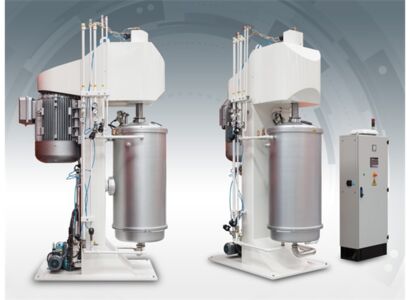

MEMAK QUICK CHOCOLATE MILL MKBM-1000-8001

Product Code: MEMAK07

75 Kw electric motor
Soft Starter
Triger belt pulley transfer
Belt-Pulley Protective Cover
Water Cooled There is water cooling system in the mixer shaft.
Hardened arm and disc system
Volume 550 liters
There is a sieve in the material inlet and outlet.
HRC 63 (± 3) Rockwell hardness 1550 kg balls are used
Total power 81.2 kW
Air Pressure 6-8 bar
10 m³ / h Cold water is required.
Cold Water Grade 10 ºC
0,5 m³ / h hot water is required.

TECHNICIAL SPECIFICATIONS
Capacity
1000 kg / h
Main Engine Power
75 Kw 240 rpm
Chocolate Transfer Pump Motor Power
1.5 Kw
Total power
76,5 Kw
