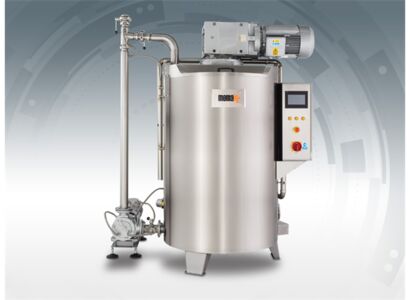

MEMAK CHOCOLATE CHILLER MILL MKCM-600-7998

Product Code: MEMAK04

The jacketed water is heated and made from complex stainless CR-NI material
It can be set on PLC and touch screen on motor and temperature controls.
500 kg special steel grain balls are used in our machine
Thanks to the 3-way valve, a homogenous thinning is achieved by circulation and automatic transfer to the chocolate resting tank
The special angled hoe allows the balls to move up and down and the chocolate mixture is thinned
Thanks to PLC and touch screen:
Main motor operation time, Chocolate mixture, and the activation of cooling system are automatically provided.

TECHNICIAL SPECIFICATIONS
Capacity
600 kg / 2-4 hours / hour
Main Engine Power
15 Kw KR-673-60 rpm
Resistance Force
9 Kw
Chocolate Transfer Pump Motor Power
2.2 Kw / 2
Total power
27 Kw
