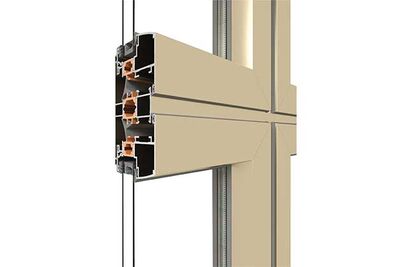

LR-5100-39537

Product Code: LR-5100

LR-5100 Characteristics Reflected Product's Identity

Optimum Solutions with Wide Profile Options
Possibility to Apply PVC Double Opening System with Standart Aluminium Double Opening System
Excellent Sealing and Sound Isolation as a Result of Joining of Radiused Thermal Insulation Barrier with Case Middle Container
Custom Designed Adjustable Lock Provisions
Application of Better Heat Insulation Value with Difference Combinations
Triple Glass and Venetian Glass Applicability
Modern and Aesthetic Appearance of the Metal, Silver, and Bronze Colored Eloxal Surfaces
Powder Paint and Wooden Appearance Options on Specially Designed Different Concepts
Technic Specifications of the System

Wing Width: 72 mm
Case Width: 65 mm
Case Wing Height (min.): 90 mm
Glass Thickness: 16 – 42 mm arası
Max. Wing Carrying Capacity: 120 Kg ∼ 200 kg
Insulation Bridge: 24 mm
Heat Insulation EN ISO 10077-2: Uf=2,3 W/m2K
