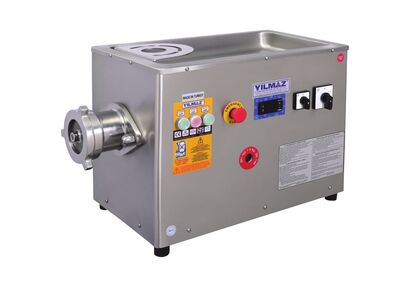

32 INOX 3231 STR Ø 100 mm FULL STAINLESS STEEL COOLING MINCING MACHINE WITH DETACHABLE HEAD -41300
Product Code: INOX 3231 STR
32 INOX 3231 STR Ø 100 mm
FULL STAINLESS STEEL COOLING MINCING MACHINE WITH DETACHABLE HEAD
PRODUCT FEATURES:
• Designed by our company for the first time in compliance with CE standards, duly considering hygiene and human health.
• Engine power: 4 Hp 3 Kw 400Volt 50 Hz.
• Capacity: 600 kg/h when used with 4,5 mm plate.
• Dimensions:
Width : 380 mm
Length : 785 mm
Height : 480 mm
• Net weight: 87 Kg
• Plate / Blade
1 / 1
• Cast aluminium transmission body. The front cover of transmission is made of gray cast iron for preventing oxidation and corrosion of sealing bearing.
• All connecting elements of meat processing units on the machine are made of grade 304 stainless steel sheet.
• The upper tray (meat loading chamber) and case are made of grade 304 stainless steel sheet.
• Bottom surface of upper tray features thermal insulation.
• Upper tray sides are shaped oval for preventing accumulation of bacteria.
• The upper tray features 3-mm thick grade 304 stainless steel hand protection apparatus.
• The head (meat output chamber), worm (helix or ball), collar (nut) and meat inlet hopper are made of Grade 304 cast stainless steel.
• 2 M16 stainless steel bolts and 2 M16 stainless steel nuts are used for mounting and demounting the meat output chamber. Cap nut with closed front surface is used in order to prevent entrance of external dust-dirt, etc.
• The meat output chamber (head) is easily detachable for hygiene and cleaning purposes.
• A stainless steel wrench is available for mounting and demounting the collar (nut) and meat output head.
• Features a backside handle for easy carriage.
• Features forward-backward-stop buttons, as well as an emergency stop button.
• Features stainless plate and blade.
• At the bottom part of the machine, there is a protective screen for preventing entrance of pests.
• The machine features oil-proof and flameproof H07-RNF 5 x 1,5 TTR wiring cable.
• Features cooling system for preventing the minced meat to become dark and smell bad.
• The machine features 1/6 hp ecovat.
• The machine uses ozone and environmentally friendly R 134 a fluid liquid gas.
• The machine features 2 air suction fans to ensure heat exhaustion.
• The machine features an automatic cooling function enabling adjustment of cooling degree.
