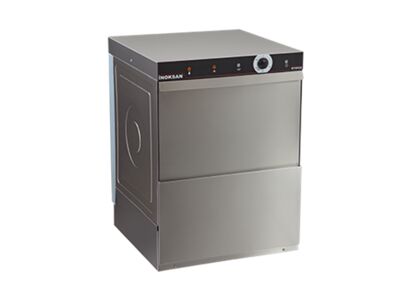

Undercounter Dishwasher-18718

Product Code: BYM 052S

All parts; which are in contact with the body of the machine and the water; are produced with AISI 430 quality 18/8 Cr-Ni stainless steel plate.

It has 3 different washing programs according to the type and degree of dirtiness of the dish.

Wash time, rinse time and temperature can be changed from the electronic card service menu based user's choice.

Temperature indicator is 3 digit; adjustable for °C and ˚F.

The rinse water is 55˚C.

Max and min. water levels of tank can be controlled automatically from the presostat.

Error and fault codes can be seen from the device control panel.

There is a safety system to stop the operation when the door is opened.

The machine can wash plates with maximum 290 mm diameter and glasses with maximum height of 280 mm and other objects.

Glass and plate racks are made of heat resistant plastic material.

Washing and rinsing arms and filters can be easily disassembled for cleaning.

As standard accessories; there are 1 plate and 1 glass rack with 500*500 mm dimensions

Optional units: Drainage pump, Rinsing Pump, Detergent Pump

Water Inlet ¾

Water Input Pressure: 2-4 bar

Heat Capacity:

Tank: 2,7 kW

Boiler: 2,6 kW

Max. Power consumption: 3,15 kW

Power Input: 220-230V 1N AC 50-60Hz

Cable cross section: 3*2,5 mm

Capacity:

Plate: 540 pcs/h

Glass: 1440 pcs/h

Dimensions: 600*600*830mm

Net Weight: 50 Kg
