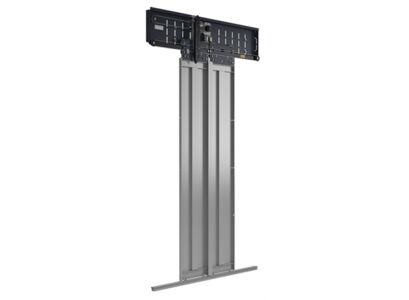

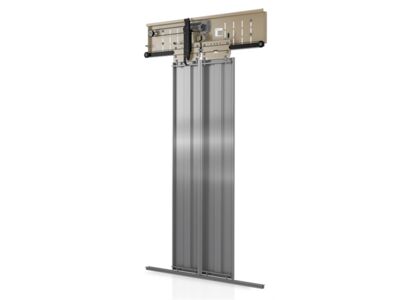

B01- CENTRAL 2 PANEL -11525

Product Code: B01

TECHNICAL SPECIFICATIONS

• DC-PWM driver without limit switch
• 220 V AC supply voltage
• 24 V DC brushed motor
• Double channel (A,B) 100 ppr encoder
• Clear opening dimension (700mm~1300mm)
• The number of opening/closing cycles per year
800.000

Multiple electronic settings
• Size / Length and Velocity parameters
• Door power that can be adjusted separately on
opening and closing directions
• Compatibility with variation of open/close
command signals (24 VDC-220 VAC)
• Ability to operate with single (close) signal
• Adjustment of short circuit types as NO/NC

Multiple mechanic settings
• Practical assembly
• Panel adjustment in 3 axes
• Adjustability of clear opening
