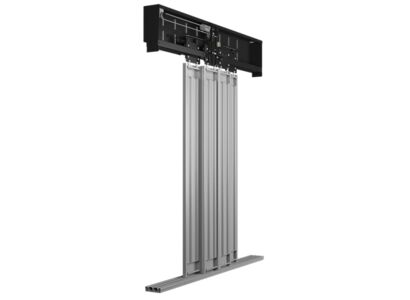

H-MAX 4 PANEL CENTRAL -11536

Product Code: H-MAX

TECHNICAL SPECIFICATIONS

• 30 V DC brushed motor
• Siemens AT 40 driver
• Double channel (A,B) 100 ppr encoder
• Switched power supply Siemens NT-40
• The supply voltage : AC 230 V ± %15 / 47 .. 63 Hz / 0,7 A
• Nominal output voltage +36 VDC, ± %3
• Practical Assembly
• Clear opening dimension (1400mm ~ 3500mm)
• Clear opening height (2000mm ~ 3500mm)

Multi-directional mechanic adjustments
• Panel adjustment in 3 axes
• Clear entrance opening adjustment

Multi-directional electronical adjustments
• Door power can be limited separately in opening & closing direction
• Dimension, length and speed parameters that provide adjustment of
sensitivity of door motion profile
