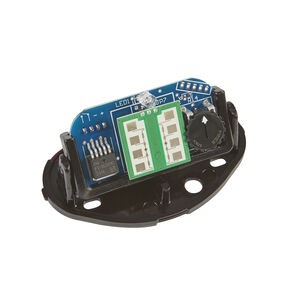

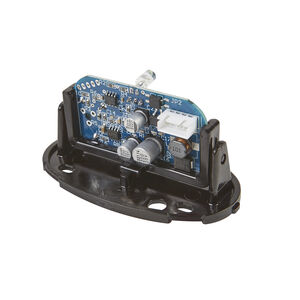

Automatic Photocell Glass Door Radar Motion Sensor-43511

Product Code: ACT205

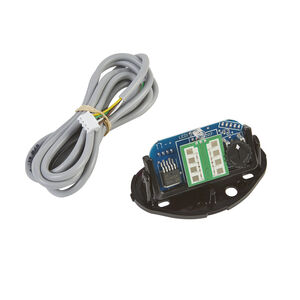

BECAUSE OUR RADAR CABLE IS SELF-CONNECTED, PLUG IT TO THE RADAR INTEGRATED ACCORDING TO THE DIRECTION OF THE NOTCH.

OUR BROWN CIP IS +12 OR +24 VOLT DC.

OUR WHITE CABLE IS (-)GND.

OUR YELLOW AND GREEN CABLES ARE DRY CONTACT TIPS.

WITH PIHER BRAND 1 MEGA OHM TRIMPOT ON THE FRONT BODY, SENSITIVITY CAN BE ADJUSTED WITHIN 50/800 CM WORKING DISTANCE.

(-) IN CASE TO WORK WITH THE TRIGGER, YELLOW CABLE IS CONNECTED TO GND, GREEN CABLE TO TRIGGER (SIGNAL) LEADS.

IN CASE TO WORK WITH THE (+) TRIGGER, THE YELLOW CABLE (+) IS CONNECTED TO THE GREEN CABLE TO THE TRIGGER(SIGNAL) END.

THE ANGLE THAT YOU GIVE FROM THE RADAR BODY WITH THE SENSITIVITY/DISTANCE TRIMPOT MUST BE CORRECTLY PROPORTIONAL.

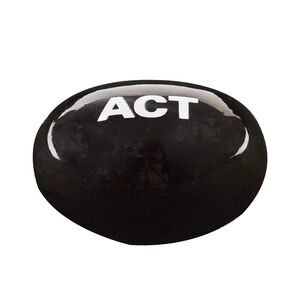

The cover of the radar product must fit tightly because;

In order not to be affected by water events
In order not to be affected by vibration in stormy weather
Dust, burrs etc. so that the substances do not leak
We have produced such a product for the longevity of the product and for our customers to use healthier products.
MAKE THE INSTALLATION PROCESS WITH SUPPORT FROM YOUR TECHNICAL TEAM.

YOU CAN CONTACT OUR COMPANY, THE MANUFACTURER OF THE PRODUCT, WITH YOUR QUESTIONS, COMPLAINTS AND SUGGESTIONS.
PRODUCT DESCRIPTION:

· Radar is a product that detects any approaching movement and triggers a dry contact to the circuit. Adjustable between 50cm and 500cm.

It detects all kinds of movements, can be connected side by side or at close distances, not affected by each other, not affected when exposed to any control frequency.

· Contact time can be adjusted.

· It is not affected by the interference caused by the network, it works stable, it is not affected by the daylight.

USAGE AREAS:

Automatic glass door systems

Automatic photocell sliding door systems

Industrial sectional doors

sectional garage doors

Shutter / Shutter systems

Industrial Fast PVC doors
