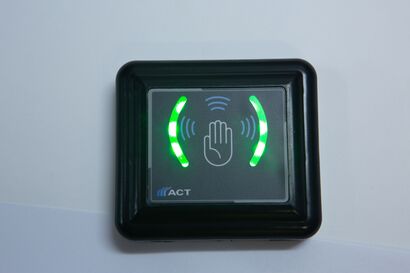

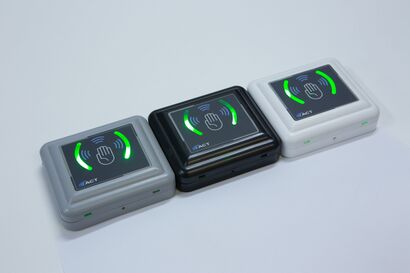

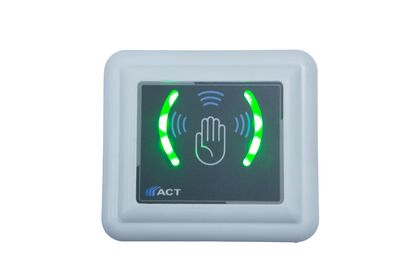

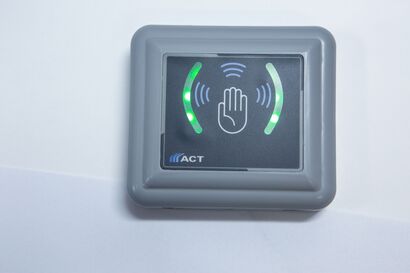

Flush Mounted and Above Automatic Photocell Door Hand Approach Motion Sensor-43510

Product Code: ACT203

PRODUCT DESCRIPTION:

· Hand Sensor is a product that detects any approaching movement and triggers a dry contact to the circuit over the relay.

Its advantage in microwave operation is that, unlike its counterparts in the market, it is not insensitive to black or any dark color, it detects any movement (3/50 cm adjustable).

· They can be connected side by side or at close mutual distances, they are not affected by each other, they are not affected when exposed to any control frequency.

· Contact time can be adjusted.

· It is not affected by the interference caused by the network, it works stable, it is not affected by the daylight.

It has software and hardware interference filters.

It has microwave sensor.

Since it has a microwave sensor, it also detects motion in gloved situations.

Since it is a polycarbonate material, it does not produce and host bacteria.

Since it is a polycarbonate material, it does not cause breakage and thinning.
USAGE AREAS:

Automatic glass door systems

It is a preferred product because it is hygienic wherever the button is used.


HAND APPROACH SENSOR

BROWN LABEL PART 12VDC-24VDC INPUT FROM YOUR SYSTEM,

WHITELABELED PART GND(-) INPUT,

PART WITH YELLABE COM(-) INTRODUCTION,

YOU CAN CONNECT WITH OPTIONAL RENO/NC TRIGGER TIPS.

YOU CAN DEFINE RELAY TIME IN THE TIME INTERVAL OF 0-30 SECONDS THROUGH THE TIME TRIMPOT,

YOU CAN DEFINE DISTANCE RANGE OF 3-50 CM THROUGH THE SENSITIVITY / DISTANCE RIMPOT,

IT IS DEFINED AS RIGHT SIDE CYCLE OPENING THROUGH TRIMPOT, LEFT SIDE CYCLE BUTTON.

OUR SYSTEM HAS BOTH SOFTWARE AND HARDWARE FILTER IN ORDER TO BE AFFECTED BY INTERFERENCE.

IT IS MICROWAVE SENSOR,

PERCEIVES MOTION IN THE USE OF BLACK OR SURGICAL GLOVES ETC.

INDICATOR LEDS LIGHT LOW UNTIL IT IS NOT TRIGGERED, FLASH IMMEDIATELY.

IT CAN BE ASSEMBLED IN THE AREA YOU WANT THROUGH 4 SCREW HOLES ON THE BACK SURFACE OF THE POLYCARBON CASE.

Whatever your requirements, we certainly have an antibacterial protection for your desired end use in our product. The function of the antibacterial additives used; It is to prevent the growth of bacteria, mold and pathogenic microorganisms by 99%.
