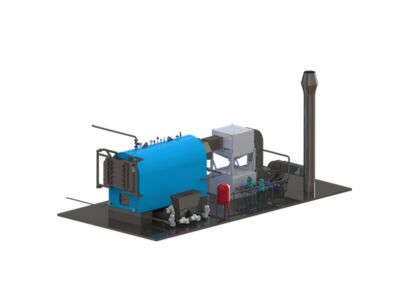

YS-SEMI CYLINCRICAL SOLID FUEL FIRED HOT WATER BOILERS-25725

Product Code: YS

YS SERIES
Heat generation capacity: 70 kW - 1744 kW
Fuel Type: Biomass, Coal, Pellet

3 PASS HIGH EFFICIENCY SEMI CYLINCRICAL SOLID FUEL FIRED HOT WATER BOILERS

YS model boilers are designed and manufactured according to the well-known, three pass design that allows obtaining adequate heating surface and lower exhaust gas temperature compared with two pass design. The half cylindrical compact design brings installation and cost advantages without any sacrifice from heating surface.

YS model boilers are specially designed for high efficiency at operating pressures up to 5 bar. For higher operating pressures (up to 10 bar) special production can be carried out, upon customer’s request.

The indicated heat transfer surface for each capacity is completely correct and it shows the net area along where the heat is transferred to water inside the boiler.

Approximately 10000 kcal/h heat is obtained from 1 m2 heating surface. Boiler is supplied as packaged with all necessary accessories, control devices and auxiliary equipment on customer’s request.

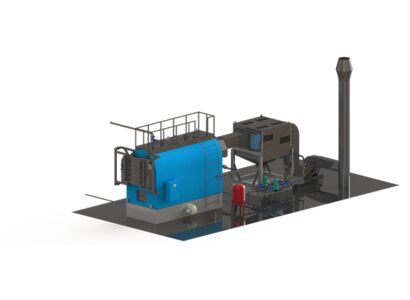

YS model boilers are suitable to be used with gas / oil burners and with a wide range of solid fuel types such as; wood, coal, olive seeds, pellets, nut shells, seeds of various plants, dried manure, dried pomace and other types of biomass. By implementing an automatic stoker feeding system or an automatic water cooled vibrating grate to the boiler, small sized solid fuel types are easily used for firing.

Isolation of the boiler is specially made to minimize the thermal loss. On the surface; special covering plates are used to protect the outer shell from weather conditions and tearing at maximum level.

Boiler consists of a half cylindrical, 3 pass, fire tube, wet back main body and furnace at proper thickness, according to the boiler’s operating pressure. EN12953 and TS497 are taken as reference for design calculations where applicable.

Steel Materials:
P265GH – P295GH -P355GH according to EN12953 and TS497 requirements and S235J – S355J carbon steel for non-pressurized parts
Tubes:
Seamless tubes (EN10216, ASTM A106 Gr.B or St35.8 & Gost10)
Isolation:
100 mm thick and 80 kg/m3 rock wool is covered with PVC coated
galvanized steel, aluminum or stainless steel according to Customer’s request
