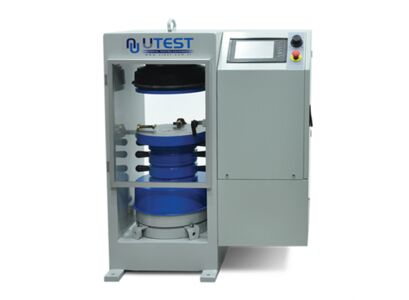

Automatic Concrete Compression Machine-11589
Product Code: UTC-5727.FPR
AUTOMATIC COMPRESSION TESTING MACHINES
Product Code
UTC-5727.FPR 2000 kN Automatic Compression Testing Machine EN, 220-240 V 50-60 Hz
UTC-4722.FPR 2000 kN Automatic Compression Testing Machine ASTM, 220-240 V 50-60 Hz
UTC-5737.FPR-N 2000 kN Automatic Compression Testing Machine ASTM, 110 V 60 Hz
UTC-5737.FPR 3000 kN Automatic Compression Testing Machine EN, 220-240 V 50-60 Hz
UTC-4733.FPR 3000 kN Automatic Compression Testing Machine ASTM, 220-240 V 50-60 Hz
UTC-4733.FPR-N 3000 kN Automatic Compression Testing Machine ASTM, 110 V 60 Hz
UTC-0210 High Precision Pressure Transducer and Electronic
Standards
EN 12390-3, 12390-4; BS 1881; ASTM C39
UTEST Automatic range of 2000 kN and 3000 kN capacity compression testing machines have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are the results of continuous research to upgrade the testing machines with the latest technologies to conform to the latest standards EN 12390-3, 12390- 4, BS 1881 and ASTM C39 in terms of its technical properties taking into account client requirements. These also meet the requirements of CE norms for the safety and health of the operator.
Tests can be performed by either on BC 100 Unit or on a computer with using free UTEST Software. The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc., can be seen at pages 155 and 156.
The UTEST Automatic range of 2000 kN and 3000 kN capacity compression testing machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus, the only required operations are;
• Setting test parameters, including pace rate (only required when the specimen type is changed).
• Pressing the START button on the control unit
• The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
• Automatically saves the test parameters and test results
Exceeding of the ASTM C-39 standard provisions (starts with the 10% of the machine capacity), the UTC-4231, UTC-4331, UTC-6231 and UTC-6331 are supplied in Class 1 starting from 50 kN. This exceptional performance enables the machines to be used for a considerable number of applications including:
• Early age compression strength tests
• Flexural tests by using proper accessories
• Mortar (Cement) compression tests by using proper accessories
• Core with low diameter compression tests
The compression machines consist of a heavy duty welded frame, automatic hydraulic power pack with data acquisition and control system BC 100.
UTC-4231 and UTC-4331 Testing Machine is supplied complete with;
• Ø 205x90 mm, Ø 205x50 mm and Ø 205x30 mm distance pieces
• UTC-4513 Upper Platen (with ball seating assembly) Ø300 mm, Lower Platen Ø300 mm.
UTC-4510, UTC-4511, UTC-4512 and UTC-4515 upper and lower platen sets can also be used with UTC-4231 and UTC-4331 testing machines.
UTC-6231 and UTC-6331 Compression Testing Machines are supplied complete with;
• Ø 165x90 mm, Ø 165x50 mm and 2 pcs. Ø 165x30 mm distance pieces
• UTC-4511 Upper Platen (with ball seating assembly) Ø165 mm, Lower Platen Ø165 mm.
UTC-4510, UTC-4512 and UTC-4515 upper and lower platen sets can also be used with UTC-6231 and
UTC-6331 Compression Testing Machines.
Safety Features
• Maximum pressure valves to avoid machine overloading
• Piston travel limit switch
• Emergency stop button
• Front and rear transparent durable plexiglas guards
• Software controlled maximum load value
Model UTC-4231 UTC-4331 UTC-6231 UTC-6331
Capacity 2000 kN 3000 kN 2000 kN 3000 kN
Standard EN EN ASTM ASTM
The roughness value for texture of loading and auxiliary platens ≤ 3.2μm ≤ 3.2μm ≤ 3.2μm ≤ 3.2μm
Lower platens dimensions Ø300 mm Ø300 mm Ø165 mm Ø165 mm
Upper platens dimensions Ø300 mm Ø300 mm Ø165 mm Ø165 mm
Maximum vertical clearance between platens 340 mm 340 mm 370 mm 370 mm
Piston diameter 250 mm 300 mm 250 mm 300 mm
Maximum piston movement 50 mm 50 mm 50 mm 50 mm
Horizontal clearance 360 mm 425 mm 360 mm 425 mm
Power 750 W 750 W 750 W 750 W
Oil capacity 20 L 20 L 20 L 20 L
Maximum working pressure 410 Bar 410 Bar 410 Bar 410 Bar
Dimensions (wxlxh) 810x500x970 mm 810x500x970 mm 810x500x970 mm 810x500x970 mm
Weight 795 kg 1095 kg 775 kg 1075 kg
Maximum horizontal clearance for placing sample is limited with the border of the platens. Sample must be placed such that its ends will
not overflow from the ends of platens and it must be centred perfectly.
The suitable vertical clearance for specimen can be adjusted with distance pieces .
110 V, 50 Hz models are available upon request. The only difference is the input voltage.
