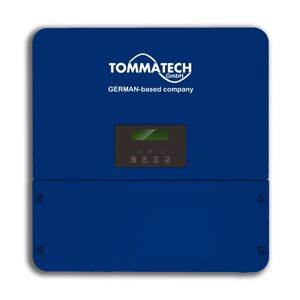

TOMMATECH UNO-HYBRID 5.0 ​​SINGLE PHASE STRING INVERTER-39227

Product Code: TTUNO5.0

The new generation Single Phase TommaTech Uno-Hybrid Series Inverters have a maximum efficiency of 97.8% and a high pv string voltage up to 600V. TommaTech Hybrid Inverters come to the fore with their functionality. TommaTech Uno-Hybrid inverters provide easy plug-and-play installation with accompanying state-of-the-art lithium-ion batteries. Thanks to TommaTech Hybrid Systems, compact solar energy solutions are offered with new generation storage.

DC INPUT:
Maximum PV Array Power (Wp): 7500
Maximum DC Voltage (V): 600
Rated DC Operating Voltage (V): 360
Maximum Input Current (A): 12/12
Maximum Short Circuit Current (A): 14/14
MPPT Voltage Range (V): 125 - 550
Switching Voltage (V): 150
Number of MPPTs: 2
MPPT Array Input Number: 1/1

DC OUTPUT:
Battery Voltage Range(V): 85 - 400
Recommended Battery Voltage (V): 300
Maximum Continuous Charge/Discharge Current (A): 20
Communication Interface: CAN/RS485
Reverse Binding Protection: YES

YIELD:
MPPT Efficiency (%): 99.9
European Efficiency(%): 97.0
Maximum Efficiency(%): 97.8

PHYSICAL PROPERTIES:
Dimensions (mm): 476x464x180
Weight(kg): 24
Standard Warranty (Year): 5 (Extendable)
