PASTEURISER-27990

Product Code:

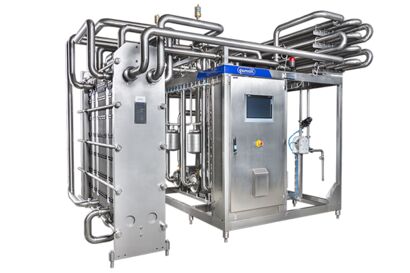

Available in capacities ranging from 500 to 60,000 l/h in accordance with customer needs. The Plated Pasteurizer is pre-assembled and factory tested with water to ensure fast installation and commissioning for reliable performance and high ROI over a long service life. Mounted on an AISI 304
stainless steel frame. ALFA LAVAL plates are used and they are made of 316 ALLOY or Titanium. They are in the form of herringbone and patented chocolate pattern. Clip-on gaskets are used. Press plates are made of AISI 304 stainless steel. Balance tanks are made with 100, 200, 300, 500 lt capacities. AISI 316 balance pump included. Flow equipment is supplied from ALFA LAVAL and the TIG welding method is used in 11850 norms. Alfa Laval CB type brazed heat exchangers are used in the hot water preparation unit. Control and automation panels are made of SIEMENS equipment and the control system can be provided as PID or PLC control.

Capacity : 500 lt/h-60.000 lt/h
Inlet Temperature : +4°C/+40°C
Separator Outlet : +45°C/+55°C
Homogenizer Outlet : +65°/+70°C
Pasteurization Temperature : +67°C/+110°C
Incubation Temperature : +32°C/+45°C
Storage Temperature : +4°C
