AL/PVC/PVC-41766

Product Code: NAYY

YAVV(NAYY)
0.6/1 kV Single or Multi core , Stranded Aluminium conductor, PVC insulates LV power cables
Standard
TS IEC 60502-1, IEC 60502

Technical Data

Max.Operating Temperature: 70 ° C

Max.Short Circuit Temperature: 160 ° C

Rated Voltage:, 0,6/1 kV

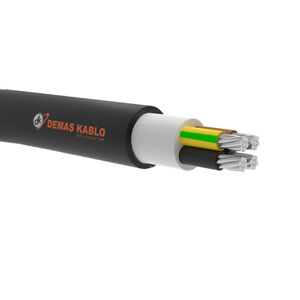

Construction

Aluminium conductor
PVC insulation
PVC filler
PVC Outer sheath
Applications
Used as lighting and power cable . Installed in areas where severe mechanical demage is not expected . Can be laid in doors , out-doors,underground and in cable ducts
