CU/XLPE/DSTA/PVC 0,6/1 kV-41764

Product Code: N2XBY (YXZ4V) U1000 RVFV

YXZ4V(N2XBY)
0.6/1 kV, Multi core,Solid or Stranded copper conductor, XLPE Insulation, Steel Tape Armour , PVC outer sheath, LV power cables
Standard
TS IEC 60502-1, IEC 60502, VDE 0276, BS 5467

Technical Data

Max.Operating Temperature: 90 ° C

Max.Short Circuit Temperature: 250 ° C

Rated Voltage:, 0,6/1 kV

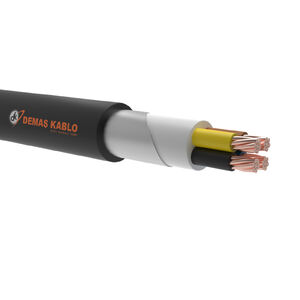

Construction

Solid or stranded copper conductor
XLPE insulation
PVC filler
Galvanized Steel Tape Armour
PVC outer Sheath
Applications
These cables, which are resistant to mechanical stress and have very low dielectric loss, are used in energy facilities where sudden load changes occur in residential and industrial areas, outside, under the ground and in cable ducts.
