LR-3100-39538

Product Code: LR-3100

·         Better Water, Air Insulation and Energy Savings
·        Ease of Production and Assembly
·        Minimal Architectural Solution with 50% Reduced Middle Anchor
·         Special Fly Screen Design Solved In The System
·         Special Designs and Options Suitable for the Project
·         High Strength and Comfort of Use with Stainless Steel Rail and Special Bearings Moving on This Rail
·         Specially Designed and High Strength Multi-Point Locking System
·         Gapless Middle Seam Detail with Polyamide Profiles
Modern and Aesthetic Appearance of Metal with Silver, Bronze Colored Anodized Surfaces
·          Specially Designed Powder Coating and Wood Appearance Options in Different Concepts

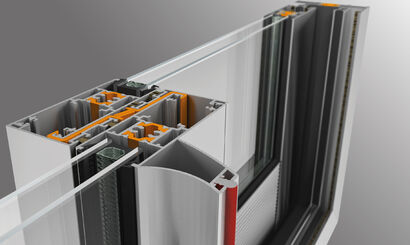

Technical Specifications of the System
·        Wing Width: 32 mm
·        Wing Height: 75 mm
·         Case Height: 44 mm
·        Clamped Middle Wing Width: 34 – 78.5 mm
·         Glass Thickness: 20 – 22 mm
·         Maximum Wing Carrying Capacity: 120 kg
·        Insulation Bridge: 20 mm
·         Thermal Insulation EN ISO 10077-2: Uf=3.8 W/m2K
Better Water, Air Insulation and Energy Savings
Ease of Production and Assembly
Special Steel Rail and Bearing Near Zero Friction For Easy and Smooth Riding
Heavy Duty Bearings
Applicability of Single or Multiple Locks That Can Be Installed Inside the Sliding Case Against Lock
More Resilient Gathering Opportunity Thanks to Its Special Wedge
Special Fly Screen Design Solved in the System
Special Design and Options Suitable for the Project
High Strength and Comfort of Use with Stainless Steel Rail and Special Bearings Moving on This Rail
Specially Designed and High Strength Multi-Point Locking System
Middle Seam-Detail Without Gaps with Polyamide Profiles
Modern and Aesthetic Appearance of Metal with Silver, Bronze Colored Anodized Surfaces
Powder Coating and Wood Appearance Options in Specially Designed Different Concepts
