Guillotine Glass System – Vertiflex-39543
Product Code: Giyotin Cam Sistemi – Vertiflex

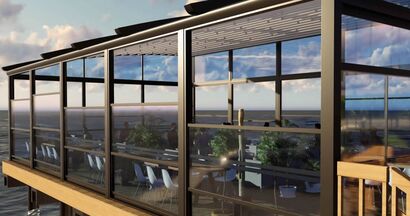

Automatic guillotine glass system; It is a remote-controlled, motorized, chained, movable handrail system. As a movable handrail system; It is heavily preferred in hotels, cafes, restaurants, stadiums, etc. There are many patented innovations in automatic guillotine glass systems, such as a safety system that prevents hand-finger jamming. The system can be made with 8 mm – 10 mm or double glazing and offers solutions that provide the highest insulation achievable in guillotine glasses.
4 x 4 System
The system has 4 stabilizer wheels. Can be applied with a maximum of 4 panels up to 4 meters high and 4 meters wide
SafeGuard Panel Connection System
*Thanks to the SafeGuard panel connection system, the chain is completely prevented from breaking off from the connection points.
Finger-tight Cover
* Patented movable cover profile prevents possible hand-finger jamming during system opening
Highest Insulation!
* Maximum insulation is provided by using EPDM gasket and bristle brush in all profiles of the system, panel-profile connections. For extra insulation, either a bristle brush or a CF foamed insulation gasket can be used thanks to the double bearings in the side strut profiles.
Quiet Comfortable Movement
* G-Motion motion system; It offers quiet and comfortable.
Fine Adjustment Mechanism
* Sensitive adjustment mechanism prevents the unbalanced movement of the panels. Chain adjustment can be made at any time thanks to the side strut covers.
Easy Installation & Fast Service
* Thanks to the segmented side strut profile and independent motor box, the whole system can be assembled very easily. When it is necessary to give service, only the necessary places can be intervened as desired, without disassembling the system completely.
Chain Transport System Designed for Heavy Loads
* 8.51mm.-14.75mm. Wide and heavy panels can be made without any problems with double steel chains, each with a load capacity of 400 kg.
4x2 Reinforced Panels
Glass-bearing panels are attached with a total of 8 screws, two at each corner. Unlike systems that use only chemical adhesives, the separation of the panels from each other is completely prevented by this mechanical connection.
Fully Automatic System
Thanks to Radio Frequency Technology, all functions of the system can be controlled with a single remote.
