EES SERIES- EASY EXPORT PACKAGED ELKBJ MODEL ELECTRIC POWERED STEAM GENERATORS-25676

Product Code: ELKBJ / EES

EES SERIES
Steam production capacity: 6 kg / h - 2000 kg / h
Operating Pressure: 8 Bar HP Series - 3 Bar LP Series
Fuel Type: Electric

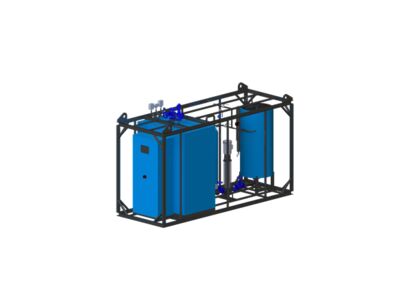

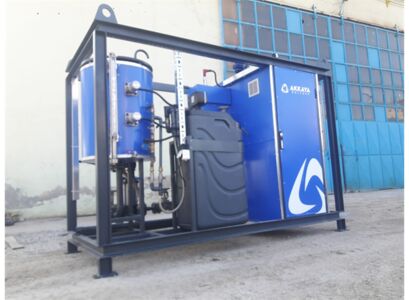

EES series steam boilers are packaged type of ELKBJ model boilers for easy installation and operation.

EES series boilers are designed for operation at 8 bar. It can be manufactured for higher working pressures up to 18 bar or lower operating pressures upon customer’ s request.

This configuration is preferred due to low investment cost.

Thanks to packaged design customized for the plants that require a relatively lower amount of steam, all auxiliary equipment is pre-installed and the system is ready to use. By this way, start-up is quick and easy. This type of boilers can also be used in different processes by being manufactured at different operating pressures.

It has sufficient steam and water volume designed for continuous and reliable steam generation.

Space requirement is smaller due to compact design and this minimizes investment cost for boiler room.

Best solution for rental applications.

Safe and stable operation thanks to high-quality safety equipments.

PLC controlled control board with touch screen provides easy operation and remote access that allows technical support to any point in the world quickly.

Factory tests are carried out by completing cabling and piping between the components.

The robust steel frame allows easy transport and possible damaging risks that may be happened during the transportation is eliminated by the help of this frame.
