EDE/EFE SERIES – EASY EXPORT PACKAGED KBB MODEL STEAM BOILERS FOR DAIRY AND FEED MILL PLANTS -25673

Product Code: EDE/EFE

EFE - EDE SERIES
Steam production capacity: 300 kg / h - 3000 kg / h
Operating Pressure: 8 Bar for EFE - 6 Bar for EDE
Fuel Type: Natural Gas, LPG, Diesel, Fuel Oil

2 pass, fire tube, cylindrical, wet back "REVERSE FLAME" steam boilers.

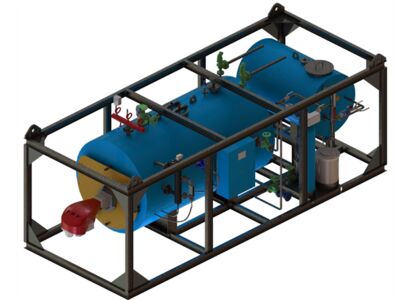

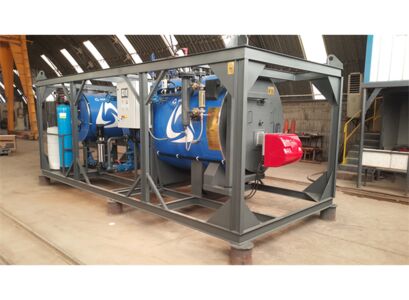

EDE/EFE series steam boilers are packaged type of KBB model boilers for easy installation and operation.

This configuration is preferred due to low investment costs.

Thanks to packaged design customized for dairy and feed mill plants, all auxiliary equipment is pre-installed and the system is ready to use. By this way, start- up is quick and easy. This type of boilers can also be used in different processes except dairy and feed mill plants by being manufactured at different operating pressures.

Space requirement is smaller due to their compact design and this minimizes investment cost for boiler room.

Best solution for rental applications.

Safe and stable operation thanks to high-quality safety equipments.

PLC controlled control board with touch screen provides easy operation and remote access that allows technical support to any point in the world quickly. Factory tests are carried out by completing cabling and piping between the components.

Quick and high-quality steam generation due to its high efficiency design.

The robust steel frame allows easy transport and possible damaging risks that may occur during the transportation are eliminated.

Steel Materials:
P265GH – P295GH -P355GH according to EN12953 requirements and S235J – S355J carbon steel for non-pressurized parts
Tubes:
Seamless tubes (EN10216, ASTM A106 Gr.B or St35.8 & Gost10)
Isolation:
100 mm thick and 80 kg/m3 rock wool is covered with PVC coated
galvanized steel, aluminum or stainless steel according to Customer’s request
